FOTON 4WD RHD ICU Box Type Ambulance
(EURO II, Diesel, BJ2037Y3KDV-R8)
(Exterior and Interior pictures of ambulance are available in the end of file)
Technical Parameters of vehicle
A |
Dimensions and Masses |
|
1 |
wheelbase (mm):3105 |
|
2 |
Front wheel tread/ Rear wheel tread: 1600/1580 |
|
3 |
Minimum ground clearance(mm):200 |
|
4 |
Minimum turning radius(mm):6800 |
|
5 |
Overall dimensions (mm):5445×1830×2600 |
|
6 |
Square cabin dimensions (mm):2600×1750×1700 |
|
7 |
Rated load of front axle (kg): 1310 |
|
8 |
Rated load of rear axle (kg): 1766 |
|
9 |
GVW (kg):2910 |
|
10 |
Complete vehicle curb mass:(kg):1860 |
|
11 |
Max. speed (Km/h):155 |
|
B |
Engine |
|
1 |
Engine:ISF2.8s2161P Cummins engine |
|
2 |
Fuel type: Diesel |
|
3 |
Torque:360N.m |
|
4 |
Displacement (ml):2776 |
|
5 |
Emission standard:EURO II |
|
6 |
Maximum power (kw):120 |
|
C |
Suspension Type and Braking |
|
1 |
Gearbox: JC538 |
|
2 |
Chassis:BJ2037Y3KDV-R8 |
|
3 |
Front Overhang:Double fork arm screw spring with lateral stabilizer bar |
|
4 |
Rear Overhang: leaf spring |
|
5 |
Brake system: Front disc and rear drum brake |
|
6 |
Steering system: Pinion and rack power-assisted steering |
|
7 |
Tire:245/70R16 |
|
1 |
ABS+EBD |
|
2 |
Radio+ MP3 |
|
3 |
Leather seat with height adjustment + waist support + 4-way headrest |
|
4 |
Electrically adjustable the rearview mirror |
|
5 |
Electrical air conditioner |
|
6 |
Electronically adjustable headlights |
|
7 |
245/70R16 aluminum wheel + spare tire aluminum wheel |
|
8 |
Engine guard |
|
9 |
Leather multi-function steering wheel |
|
10 |
Air bag |
|
11 |
rear bumper with reversing radar |
|
12 |
Side foot pedal |
|
13 |
Rear windscreen defrosting |
|
Configuration Parameters of ICU Ambulance
No. |
Name |
Items |
Qty. |
Notes |
1 |
Chassis model |
BJ2037Y3KDV-S |
1 |
|
2 |
Overall dimensions (mm) |
L×W×H |
|
5445×1830×2600 |
3 |
Square cabin (mm) |
L×W×H |
|
2600×1750×1700 |
4 |
Square cabin |
Square cabin assembly |
1 |
Sandwich board structure of military shelter, lightweight box. Including rear door, side door, window and other accessories, with front air hood, taillight and other components; Hatch doors with glass Windows |
5 |
Siren and alarm light system |
LED alarm light bar |
1 |
100W Blue Red |
6 |
LED square flashing light |
6 |
Left 2 units, right 2units, rear 2units;Blue white |
|
7 |
Outside |
Frosted glass film |
1 |
|
8 |
medical appearance |
1 |
reflective sticker according to customer's needs |
|
9 |
Patient cabin |
Air conditioning |
1 |
Independent control |
10 |
heater system |
1 |
Independent control |
|
11 |
Integral interior of medical cabin with aluminum-plastic panel |
1 |
|
|
12 |
Anti-collision headrest |
2 |
Middle door/rear door |
|
13 |
Wear resistant and non-slip blue medical floor |
1 |
|
|
14 |
PVC medical cabinet |
1 |
Including oxygen cylinder cabinet, medicine hanger cabinet, equipment cabinet, partition back cabinet, etc |
|
15 |
Loading handrail |
3 |
in side door and rear door |
|
16 |
Safety handrail |
1 |
inside roof of vehicle |
|
17 |
Transfusion hook |
2 |
|
|
18 |
Waste bin |
1 |
|
|
19 |
1KG fire extinguisher |
1 |
|
|
20 |
Seats system |
Two-person squad bench on right side |
1 |
Blue leather, two-point seat belt |
21 |
Single seat on right side |
1 |
Blue leather, three-point seat belt |
|
22 |
Oxygen supply system |
10L oxygen cylinder and its fixing bracket |
1 |
|
23 |
Oxygen supply system |
1 |
Includes oxygen piping system and pressure reducing valve |
|
24 |
Oxygen port |
1 |
|
|
25 |
Oxygen humidifier |
1 |
|
|
26 |
Ventilator adapter |
1 |
|
|
27 |
Stretcher |
Automatically loading stretcher |
1 |
|
28 |
Spine board |
1 |
|
|
29 |
Circuits and electrical appliances |
Illuminating lamp |
4 |
light strip |
30 |
Spot light |
2 |
|
|
31 |
Illuminating lamp in side and rear part |
2 |
|
|
32 |
Electric ventilator fan |
1 |
|
|
33 |
Sterilizing lamp |
1 |
|
|
34 |
Inverter |
1 |
1500W |
|
35 |
Additional battery |
1 |
100AH,Double battery isolator |
|
36 |
Outside power supply |
1 |
including 30m winding reel |
|
37 |
Sockets |
4 |
Socket (4pcs), 12V cigarette lighter (2pcs) |
|
38 |
Integrated electric control panel |
1 |
|
|
39 |
Intercom system |
1 |
|
|
40 |
Others |
Accessories |
1 |
|

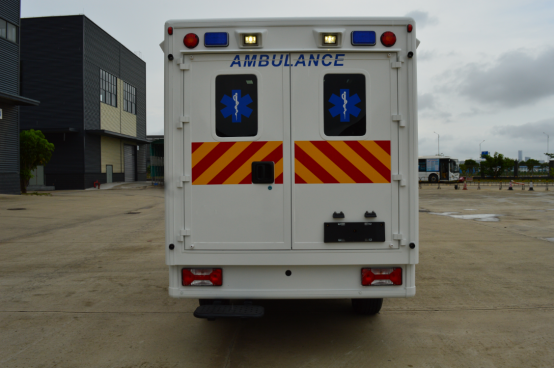

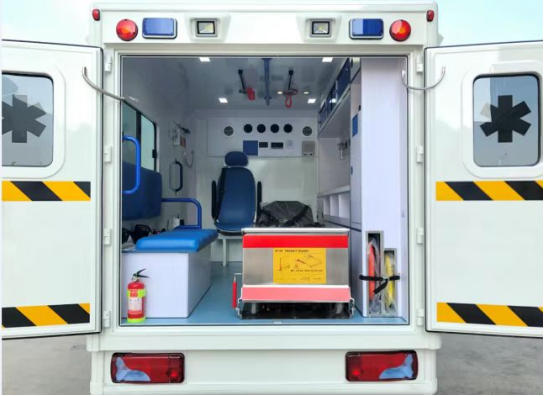

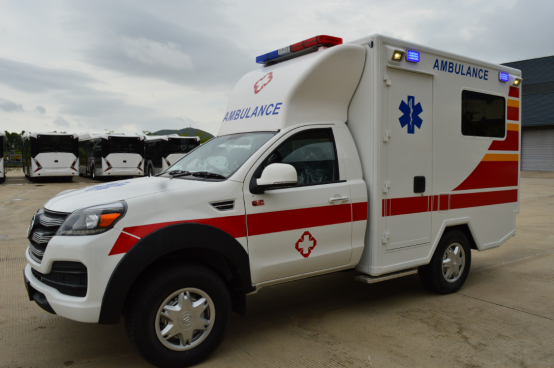

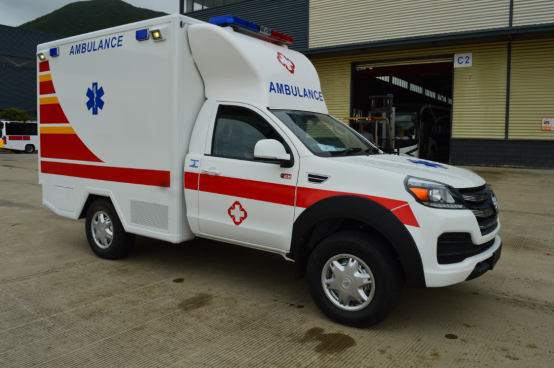

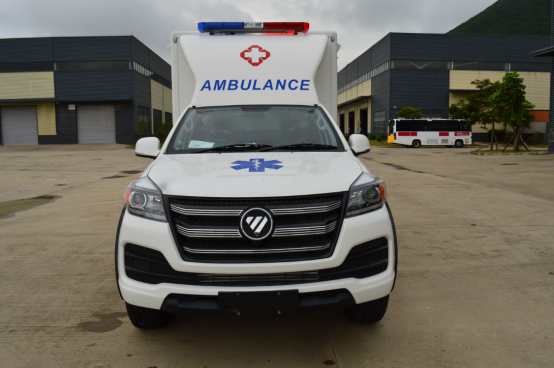

Reference Pictures of Ambulance
(Pictures for your reference only, all details are subject to confirmed technical specs and final design)
