BAW WARRIOR 4WD LHD Ambulance
(EURO IV, BJ2036CGB1-R)
(Notes: interior and exterior pictures of ambulance attached on the bottom of file)
Standard Configurations of Ambulance
1) BAW 4WD LHD vehicle BJ2036CGB1-R : 1
2) Independent A/C in cab room and patient compartment: 1set
3) Blue alarm lamp and siren: 1set
4) Transfusion support: 2units
5) Medical instrument cabinet in patient compartment: 1set
6) Oxygen bottle: 10L, 2pcs
7) Oxygen terminal: 1set
8) Electric Ventilation fan system:1set
9) Push-lift stretcher:1set
10) Scoop stretcher: 1set
11) Bench bed:1set for 2 persons
12) Partition wall with observation window:1 set
13) Illumination light in patient room:1set
14) Separate chairs in right side of patient compartment:2 units
15) Vice driver seat:1set
16) Garbage bin: 1pc
17) Inverted power supply: 1set
18) Non-contact interphone: 1 set
Technical Parameters of chassis and engine:
Basis information
1 |
Max.Speed(km/h) |
130 |
2 |
Fuel customer (L/100km) |
9.3 |
3 |
Min.turning radius (m) |
6.4 |
4 |
Angle of Approach/Departure(°) |
42/33;42/29 |
5 |
Max. Slop(%) |
≥60 |
6 |
Body color |
○ |
Body dimension
1 |
L/W/H(mm) |
5230/1960/2130 (2330mm, including alarm light) |
2 |
Wheel base(mm) |
3035 |
3 |
Tread(F/R)(mm) |
1540/1540 |
4 |
Min ground clearance(mm) |
225 |
5 |
Passenger( person) |
2 in driver’s cab |
6 |
Curb weight(kg) |
2000 |
7 |
Gross Weight (kg) |
3680 |
8 |
Fuel tank capicity (L) |
75 |
Engine dimension
1 |
Engine model |
JE4D25E |
2 |
Engine type |
Four cylinder in line,Turbo charge,water cooling,HPCR |
3 |
Rated. power(kw/rpm) |
100/3800 |
4 |
max. Torque(N.m/rpm) |
340/(2000) |
5 |
Displacement(L) |
2.499 |
6 |
Fuel |
diesel |
7 |
Emission |
Euro IV |
8 |
Working type |
Direct-injection |
9 |
Cylinder(unit) |
4 |
10 |
Valves(unit)/Cylinder |
4 |
Wheel brake
1 |
front brake system |
DSIC |
2 |
rear brake system |
DISC |
3 |
Park brake system |
MANUAL |
4 |
F/R wheel rim |
16×7JJ |
5 |
F/R tire |
LT265/75R16 |
6 |
spare tire |
LT265/75R16 |
Chassis system
1 |
Front suspension |
Front Coil Spring independent Suspension with stabilizer bar |
2 |
Rear suspension |
non- Independent suspension with Leaf spring; |
3 |
Assistant steering |
Hydraulic assistant |
4 |
Drive type |
4 wheel drive |
5 |
Transfee case type |
Mechanical BorgWarner |
6 |
Gearbox type |
5 MT TONGLI |
7 |
Rear axle ratio |
4.875 |
Safety system
1 |
ABS +EBD |
● |
2 |
3-point seat belt/frnot row seat |
● |
3 |
3-point in the side and 2-point in the middle |
— |
4 |
Front and rear hook |
● |
Interior equipment
1 |
Standard steering wheel |
● |
2 |
manual air conditioner |
● |
3 |
Central glove box |
● |
4 |
rear roof lamp |
● |
Radio
1 |
Combination meter |
● |
2 |
Speaker |
● |
3 |
FM/AM +MP3 |
● |
4 |
AUX/USB/iPod |
USB |
Exterior equipment
1 |
Manual rear view mirror |
● |
2 |
Front fog lamp |
● |
3 |
Rear fog lamp |
● |
4 |
front wipper and washer |
● |
5 |
To be enlarger single open tail door |
● |
●: standard equipment |

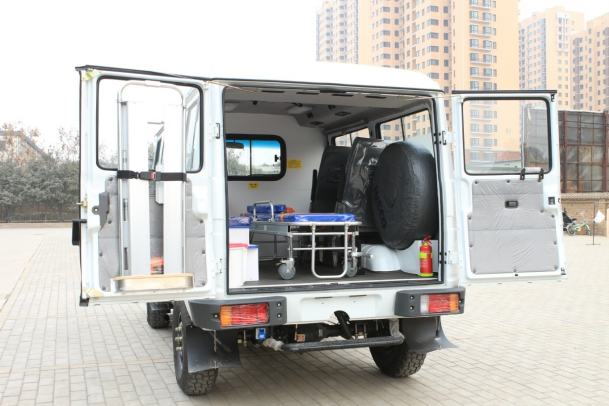

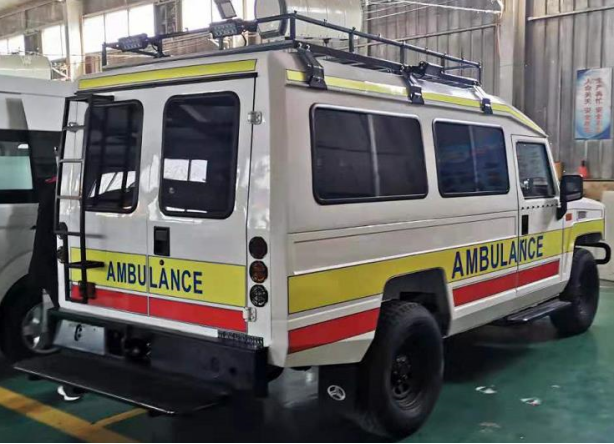

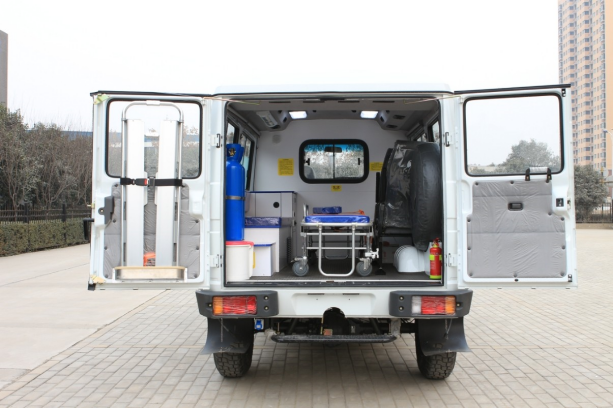

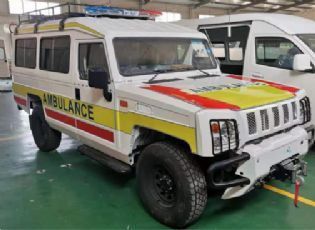

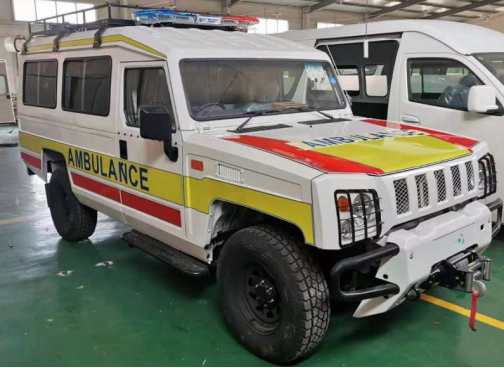

Pictures of ambulance
(The following pictures are only reference, and the final outside marking and interior design will be reconfirmed according order requirements.
