FOTON G9 RHD ICU AMBULANCE
(EURO IV, Petrol, BJ5039XJH-EE)
(Exterior and Interior pictures of ambulance are available in the end of file)
A
Technical parameters of chassis vehicle
1
wheelbase (mm):3110
2
Overall dimensions (mm):5380×1920×2505
3
Patient compartment (mm):3200×1750×1650
4
Complete vehicle curb mass:(kg):2002
5
GVW (kg):3400
6
Min. Ground clearance (mm):170
7
Min. Turning radius (mm):6250
8
Engine:4G69S4N
9
Fuel type: petrol
10
Displacement (ml):2378
11
Emission standard:EURO IV
12
Maximum power (kw):100
13
Torque (N.m): 200
14
Clutch: single plate, dry type, diaphragm spring
15
Transmission: mechanical type, 5MT
16
Front / rear overhang: 1190/1080(mm)
17
Front Suspension: Double wishbone type torsion bar spring independent suspension
18
Rear Suspension: Leaf Spring
19
Front / rear wheel tread (mm):: 1655/1650
20
Brake system: Front disc rear drum brake
21
Max. speed (Km/h):160
21
Steering system: power-assisted steering
22
Tire:195R15C
B
Standard configuration of chassis vehicle
1
Steel hub + hubcap
2
Leather steering wheel
3
Double airbags in driver’s cab
4
ABS+EBD
5
Front and rear air conditioning and front heater
6
Parking sensor
7
Four speakers
8
Side door with step light
9
Front electric window
10
Remote control lock+ remote control key
11
K1 New fabric seats
12
3 seats in driver's cab
13
Rear wiper + rear spray + rear defrost + rear mirror
14
Left sunshade (with ticket holder)
15
Right sun visor (with makeup mirror)
Configuration Parameters of ICU Ambulance
C |
Emergency Alarm System |
|
1 |
Bar alarm light (LED eight kinds flashing light effect, volume adjustable 100W loud speaker, working current ≤10A,Output impedance≤8Ω,Working temperature -40°——+50°) |
1 |
2 |
Blue snail alarm lights on the rear roof of vehicle |
2 |
3 |
2 Blue Flashing LED alarm lights mounted on left and right side of vehicle |
4 |
4 |
White exterior LED lighting mounted on the rear of both sides of the vehicle |
2 |
D |
Air Conditioner and Heater |
|
1 |
Vehicle-mounted air conditioner in patient's compartment |
1 |
2 |
Heater in patient's compartment |
1 |
E |
Power Supply and Lighting System |
|
1 |
Adjustable brightness LED illumination lights in the roof of patient's compartment |
6 |
2 |
12V time-lapse UV sterilizing lamp |
1 |
3 |
LED Spotlight lights of rear door |
1 |
4 |
1000W pure sine wave inverter |
1 |
5 |
100Ah backup battery |
1 |
6 |
IP6-level outside outlet |
1 |
7 |
15m mobile cable |
1 |
8 |
DC 12V outlets in patient's compartment |
1 |
9 |
AC 220V outlets in patient's compartment |
4 |
10 |
AC 220V power socket in driver’s cab |
1 |
11 |
Multi-function control panel, (centralized control of the modified circuit system, can directly display the battery voltage, easy to operate. Improve the safety of the whole circuit system; easier to maintain and replace fuse) |
1 |
F |
Patient's compartment |
|
1 |
PVC material compartment wall mounted between driver's cab and patient's compartment , a glass window in wall to make observation |
1 |
2 |
High polymer environmental protection flame retardant material interior roof |
1 |
3 |
The floor is made of imported medical LG acid-proof, alkali-proof, fire-proof, skidproof and anti-static blue or red floor leather |
1 |
4 |
Raised edge of patient's compartment, dust-proof, anti-skidding, washable |
1 |
5 |
The walls, doors and roof are made of high polymer environmental protection and flame retardant materials |
1 |
6 |
Interphone system between in driver’s cab and patient compartment |
|
7 |
Overturn doctor's seat with a safety belt behind the compartment wall |
1 |
8 |
Triple drawer behind partition wall |
1 |
9 |
Store cabinet for first-aid kit behind partition wall |
1 |
10 |
Oxygen cylinder fixing cabinet at the right side of the patient’s compartment |
1 |
11 |
Medical equipment cabinet is in front of oxygen cabinet, and medical equipment cabinet which is made of high polymer environmental protection and flame retardant materials |
1 |
12 |
Hanging cabinet with sliding window in right side of patient's compartment |
1 |
13 |
PVC cabinet bench (suitable for 3 people) with safe belts, the seat cushion and the back of a chair are covered with leather, mounted in left side of Patient's compartment |
1 |
14 |
Safety handrail on cabinet bench |
2 |
15 |
Safety handrail on side door |
1 |
16 |
Longitudinal oxygen supply range shall be installed in front of the right medical equipment cabinet, and 2 sets of German oxygen terminal interfaces and power sockets shall be installed in this range |
1 |
17 |
The oxygen cabinet is equipped with fixed 10L oxygen cylinder. Oxygen flow,pressure valve and oxygen pipeline layout is reasonable. |
2 |
18 |
Special oxygen inhaler (humidifier) |
2 |
19 |
Sliding transfusion hanging bracket mounted in the roof of Patient's compartment |
1 |
20 |
Ventilation fan mounted in the interior roof of Patient's compartment |
1 |
21 |
Antibacterial safety handrails are installed on the interior roof of Patient's compartment |
1 |
22 |
Automatic self-lifting stretcher mounted to patient's compartment |
1 |
23 |
Stainless steel guard at the bottom of the stretcher (Optional: Stretcher platform) |
1 |
24 |
Scoop stretcher |
1 |
25 |
Black glass-film on the right side of Patient's compartment, and 2/3 frosted film on the left side |
1 |
26 |
Collision avoidance head restraint mounted in the middle door and tail door of Patient's compartment |
1 |
27 |
Fixing strap for medical devices |
1 |
28 |
Reflective strip and logo in vehicle body |
1 |
29 |
Fire extinguisher |
1 |
30 |
Stainless steel dirt tub |
1 |
31 |
Strong blue or red reflective strip in waist of body |
1 |

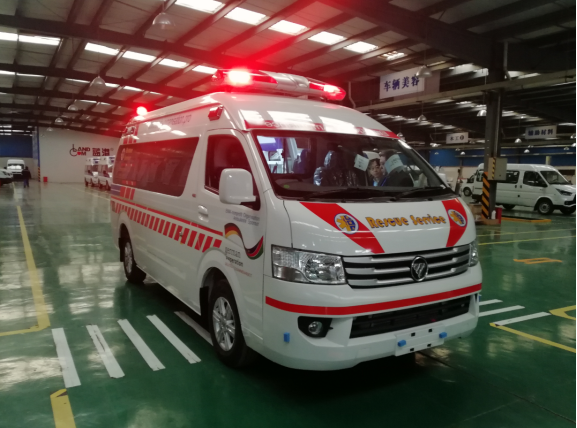

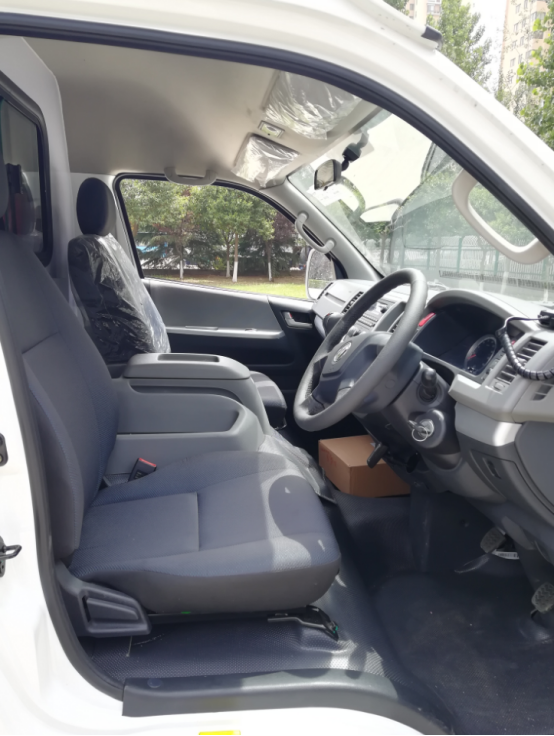

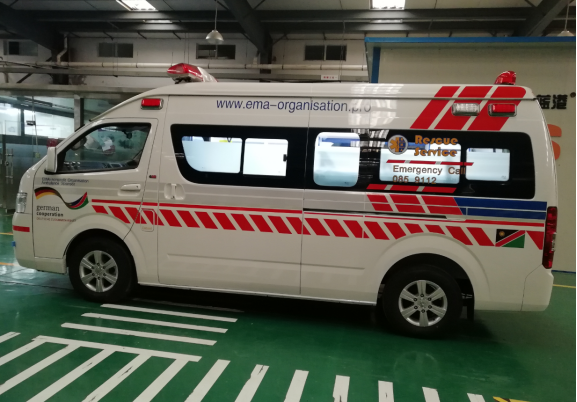

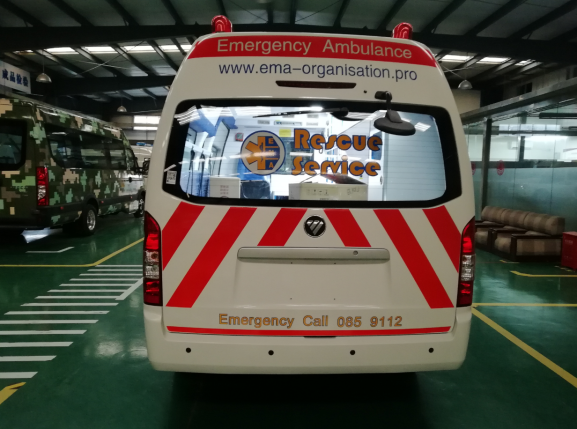

Reference Pictures of Ambulance
(Pictures for your reference only, all details are subject to confirmed technical specs and final design)

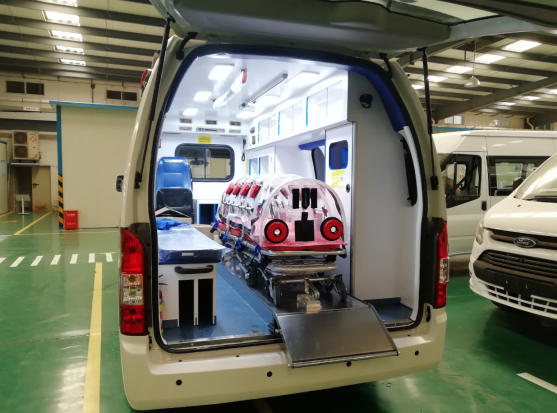

(Optional Negative Pressure Isolation Stretcher)
