FOTON G9 RHD ICU AMBULANCE
(EURO IV, Diesel, BJ6549B1PDA-RA)

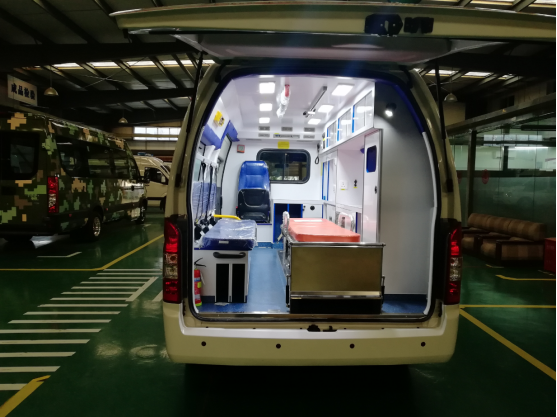

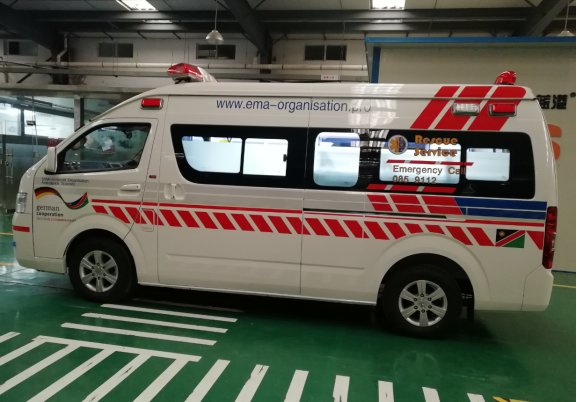

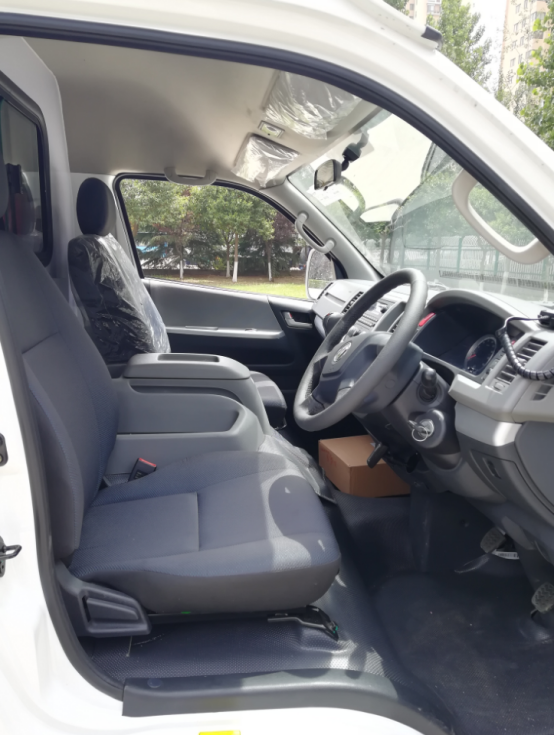

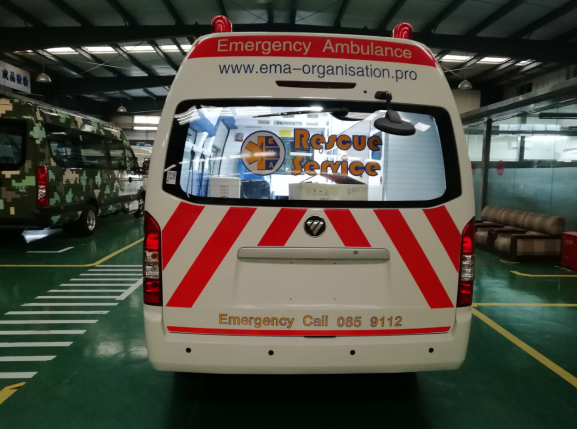

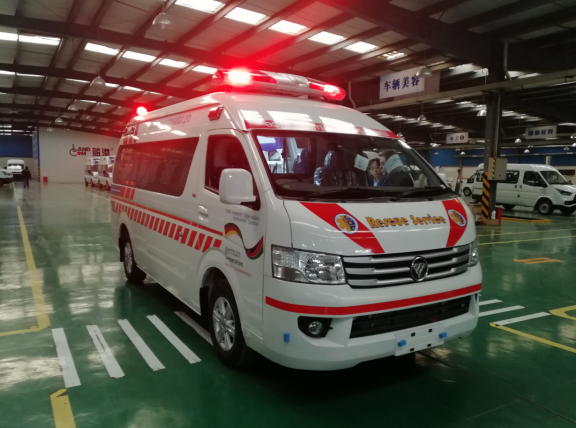

(Exterior and Interior pictures of ambulance are available in the end of file)
A |
Technical parameters |
|
1 |
wheelbase (mm):3110 |
|
2 |
Overall dimensions (mm):5380×1920×2505 |
|
3 |
Patient compartment (mm):3200×1750×1650 |
|
4 |
Complete vehicle curb mass:(kg):2255 |
|
5 |
GVW (kg):3400 |
|
6 |
Min. Ground clearance (mm):170 |
|
7 |
Min. Turning radius (mm):6250 |
|
8 |
|
|
9 |
Fuel type: Diesel |
|
10 |
Fuel consumption:9.5L/100km |
|
11 |
Displacement (ml):2780 |
|
12 |
Emission standard:EURO IV |
|
13 |
Maximum power (kw):96 |
|
14 |
Torque (N.m): 280 |
|
15 |
Clutch: single plate, dry type, diaphragm spring |
|
16 |
Transmission: mechanical type, 5MT |
|
17 |
Front overhang/ Rear overhang: 1190/1080(mm) |
|
18 |
Front wheel tread/ Rear wheel tread: 1655/1650 |
|
19 |
Brake system: Front disc rear drum brake |
|
20 |
Max. speed (Km/h):145 |
|
21 |
Steering system: power-assisted steering |
|
22 |
Tire: 195R15C, Aluminum wheel hub + spare tire steel wheel |
|
B |
Standard configuration of chassis vehicle |
|
1 |
ABS+EBD |
|
2 |
Front and rear air conditioning and heater |
|
3 |
Electronic adjustable headlamp + front fog lamp |
|
4 |
Knitted seat + headrest |
|
5 |
Electric door and window + remote control lock |
|
6 |
4 loudspeakers |
|
7 |
Radio |
|
8 |
Parking sensor |
|
9 |
Manual folding rearview mirror with electric adjustment |
|
10 |
Double airbags in driver’s cab |
|
11 |
Rear wiper + rear spray + rear defrost + rear mirror |
|
12 |
0.5 Kg fire extinguisher |
|
13 |
Leather steering wheel |
|
14 |
|
|
15 |
Front door step and step light |
|
16 |
Adjustable Angle steering wheel |
|
17 |
Driving sun visor (with makeup mirror) |
|
18 |
Front and rear bumper, same color with vehicle body |
|
19 |
Copilot sunshade (with ticket holder) |
|
20 |
High Braking Light |
|
21 |
2 seats in driver's cab |
|
Configuration Parameters of ICU Ambulance
C
Emergency Alarm System
1
Bar alarm light (LED eight kinds flashing light effect, volume adjustable 100W loud speaker, working current ≤10A,Output impedance≤8Ω,Working temperature -40°——+50°)
1
2
Blue snail alarm lights on the rear roof of vehicle
2
3
2 Blue Flashing LED alarm lights mounted on left and right side of vehicle
4
4
White exterior LED lighting mounted on the rear of both sides of the vehicle
2
D
Air Conditioner and Heater
1
Vehicle-mounted air conditioner in patient's compartment
1
2
Heater in patient's compartment
1
E
Power Supply and Lighting System
1
Adjustable brightness LED illumination lights in the roof of patient's compartment
6
2
12V time-lapse UV sterilizing lamp
1
3
LED Spotlight lights of rear door
1
4
1000W pure sine wave inverter
1
5
100Ah backup battery
1
6
IP6-level outside outlet
1
7
15m mobile cable
1
8
DC 12V outlets in patient's compartment
1
9
AC 220V outlets in patient's compartment
4
10
AC 220V power socket in driver’s cab
1
11
Multi-function control panel, (centralized control of the modified circuit system, can directly display the battery voltage, easy to operate. Improve the safety of the whole circuit system; easier to maintain and replace fuse)
1
F
Patient's compartment
1
PVC material compartment wall mounted between driver's cab and patient's compartment , a glass window in wall to make observation
1
2
High polymer environmental protection flame retardant material interior roof
1
3
The floor is made of imported medical LG acid-proof, alkali-proof, fire-proof, skidproof and anti-static blue or red floor leather
1
4
Raised edge of patient's compartment, dust-proof, anti-skidding, washable
1
5
The walls, doors and roof are made of high polymer environmental protection and flame retardant materials
1
6
Interphone system between in driver’s cab and patient compartment
7
Overturn doctor's seat with a safety belt behind the compartment wall
1
8
Triple drawer behind partition wall
1
9
Store cabinet for first-aid kit behind partition wall
1
10
Oxygen cylinder fixing cabinet at the right side of the patient’s compartment
1
11
Medical equipment cabinet is in front of oxygen cabinet, and medical equipment cabinet which is made of high polymer environmental protection and flame retardant materials
1
12
Hanging cabinet with sliding window in right side of patient's compartment
1
13
PVC cabinet bench (suitable for 3 people) with safe belts, the seat cushion and the back of a chair are covered with leather, mounted in left side of Patient's compartment
1
14
Safety handrail on cabinet bench
2
15
Safety handrail on side door
1
16
Longitudinal oxygen supply range shall be installed in front of the right medical equipment cabinet, and 2 sets of German oxygen terminal interfaces and power sockets shall be installed in this range
1
17
The oxygen cabinet is equipped with fixed 10L oxygen cylinder. Oxygen flow,pressure valve and oxygen pipeline layout is reasonable.
2
18
Special oxygen inhaler (humidifier)
2
19
Sliding transfusion hanging bracket mounted in the roof of
Patient's compartment
1
20
Ventilation fan mounted in the interior roof of Patient's compartment
1
21
Antibacterial safety handrails are installed on the interior roof of Patient's compartment
1
22
Automatic self-lifting stretcher mounted to patient's compartment
1
23
Stainless steel guard at the bottom of the stretcher (Optional: Stretcher platform)
1
24
Scoop stretcher
1
25
Black glass-film on the right side of Patient's compartment,
and 2/3 frosted film on the left side
1
26
Collision avoidance head restraint mounted in the middle door and tail door of Patient's compartment
1
27
Fixing strap for medical devices
1
28
Reflective strip and logo in vehicle body
1
29
Fire extinguisher
1
30
Stainless steel dirt tub
1
31
Strong blue or red reflective strip in waist of body
1

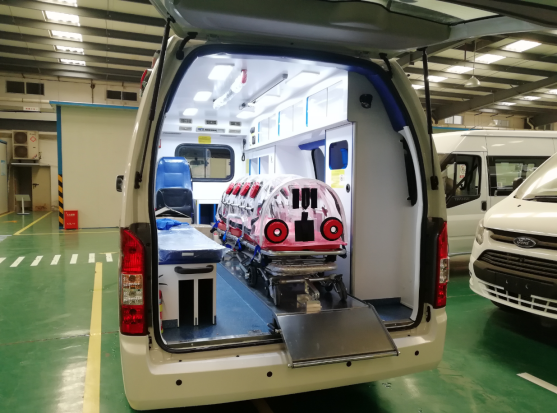

(Optional Negative Pressure Isolation Stretcher)
