FORD NEW TRANSIT V362 MCA ICU AMBULANCE
( Petrol, EURO VI, XLG5031XJH60)
Parameters and specifications of the Vehicle
A |
Dimension and Weight |
|
1 |
Overall Dimension (mm) |
L:5341, 5520 ( with optional rear foot step) W:1986 H:2450 (Heart-type alarm light) / 2495 (Embedded alarm light / 2510 (Alarm light bar) |
2 |
Dimension of Patient’s compartment (mm) |
L:2820 W:1725 H:1760 |
3 |
GVW (kg) |
3510 |
4 |
Turning diameter(m) |
12.9 |
5 |
Approach Angle/Departure Angle (°) |
22/26、22/17 ( with optional rear foot step) |
6 |
Complete vehicle curb mass (kg) |
2410,2020 |
7 |
Front/rear suspension (mm) |
1014/1027 |
8 |
Front Wheel tread (mm) |
1736 |
9 |
Rear Wheel tread (mm) |
1720 |
10 |
Minimum ground clearance (mm) |
141 |
11 |
Wheelbase (mm) |
3300 |
12 |
Max speed (km/h) |
170 |
13 |
Number of seats |
6 |
14 |
Axle Load (kg) |
1535/1765 |
15 |
Qty. of tires |
4 |
16 |
Tires size |
215/65R16C |
B |
Engine |
|
1 |
Engine |
EC0B00ST4G20E6L (FORD) |
2 |
Type of Fuel |
Gasoline
|
3 |
Working manner |
in-line, 4 cylinders, inter-cooling, direct injection gasoline engine |
4 |
Engine Manufacturer |
Jiangling Motors Corporation, Ltd |
5 |
Emission standard |
GB18352.6-2016 ChinaⅤI |
6 |
Displacement ml |
1997 |
7 |
Maximum power KW |
162 |
C |
Suspension and brake system |
|
1 |
Gearbox |
5 SPD VXT75 |
2 |
Brake system |
Front caliper disc, rear caliper disc |
3 |
Suspension system |
McPherson independent front suspension, plate spring non-independent rear suspension |
4 |
Service Brake |
Front disc rear disc |
5 |
Parking Brake |
Manual Mechanical action on rear wheel |
6 |
Chassis |
JX5033XXYPFM-M6 whole body |
Standard configuration of vehicle |
||
1 |
Side sliding door+ Side door on the pedal |
|
2 |
Central control door lock |
|
3 |
Front power window |
|
4 |
Driver seat manual 6 adjustment |
|
5 |
Steel Hub |
|
6 |
Integrated side window |
|
7 |
Driver airbag+Seatbelt Warning |
|
8 |
Four wheel disc brake |
|
9 |
ABS |
|
10 |
||
11 |
Central control multimedia screen, Bluetooth hands-free, BAIDU LIFE navigation, air conditioning adjustment |
|
12 |
Air Conditioner |
|
13 |
All-metal closed bearing body |
|
14 |
Multi-function steering wheel |
|
15 |
Parking radar+parking camera |
|
16 |
Cruise Control |
|
17 |
Automatic Headlight |
|
18 |
Rear foot step (optional) |
1. Parameter of ICU Ambulance

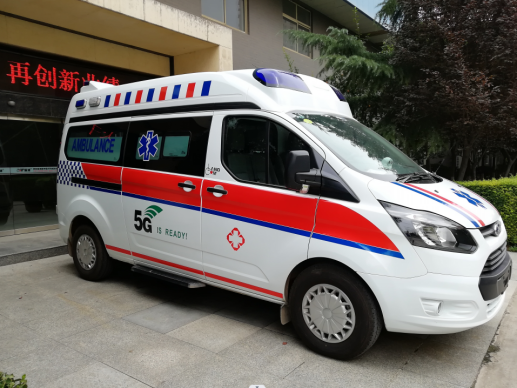

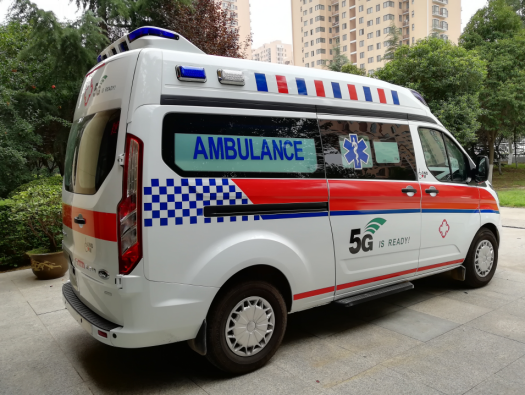

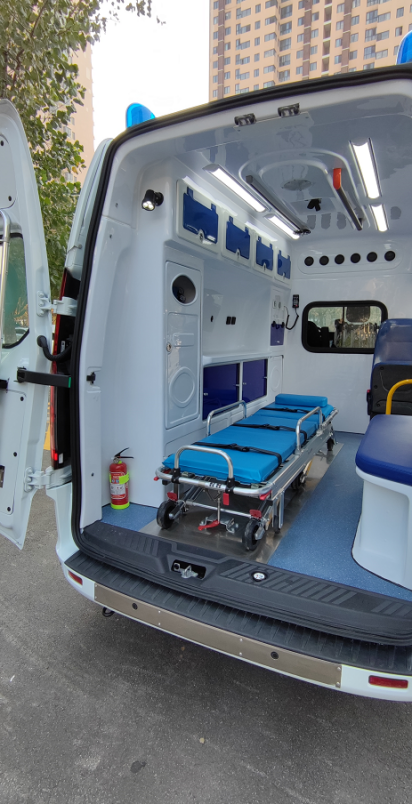

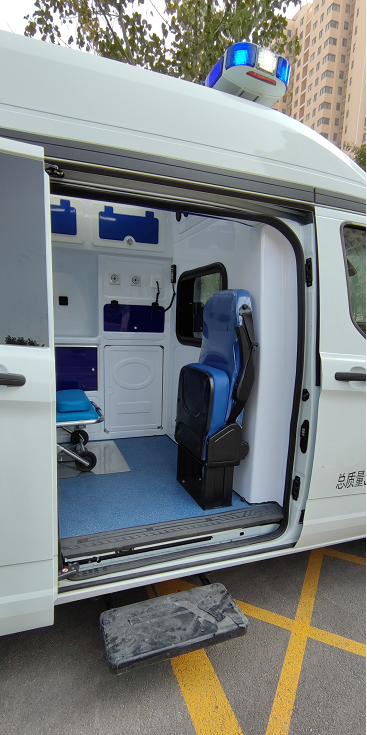

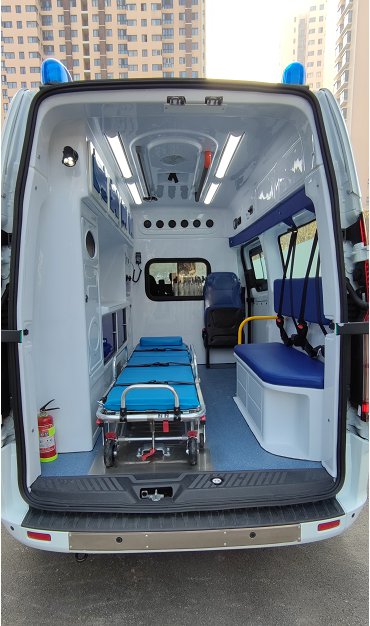

Reference pictures of ICU ambulance
(Option 1: Heart-type alarm light)

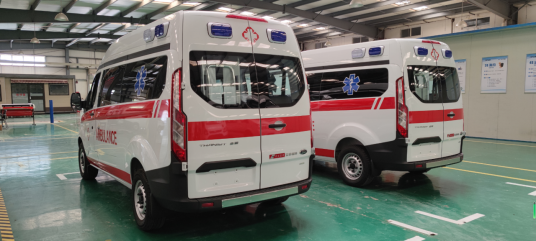

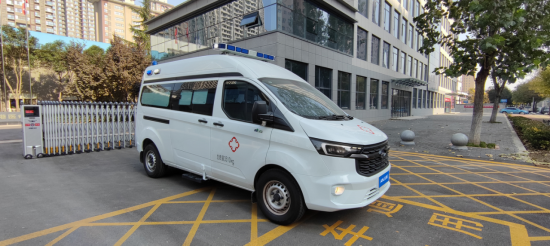

(Option 2: Embedded alarm light)

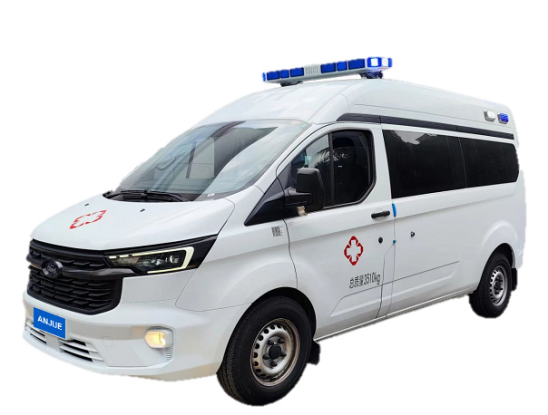

(Option 3: Alarm light bar)
