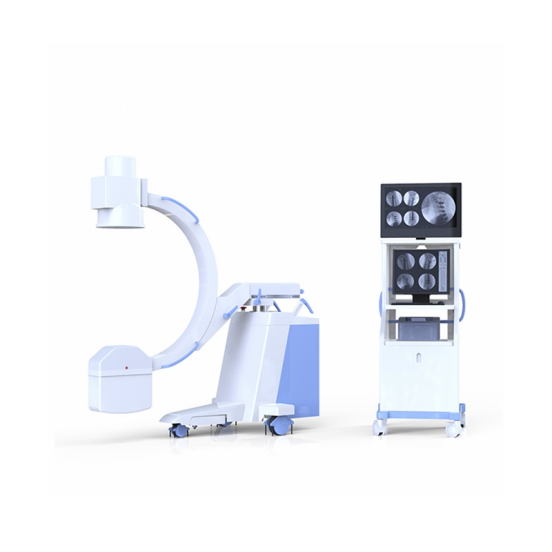

5KW Digital Mobile C-arm system for Orthopedic Surgery AJ-PLX112B1
Auto Fluoroscopy
• High frequency high voltage x-ray generator and high precision digital pulse control technology ensure excellent image with low skin dose.
• Digital radiography function, no more film-screen system, simplify the operate process.
• Maximum optimize the image brightness and definition depend on the kV/ mA auto trace function.
• Electric controlled rotated beam limiting device can satisfy multi-angle and multi-directional anatomical display requirements.
Digital workstation for the complete examination workflow
• High quality image intensifier.
• High definition CCD camera.
• High-resolution high-brightness monitoring system.
• Equipped with workstation to realize the functions include registration, image collection, processing, issue the report and so on,Dicom interface to connect the hospital imaging network.
Specifications
Power Output: 5KW
Inverter Frequency : 40KHZ
Dual-focus:0.3/1.5
Tube Voltage : 40KV~120kv
X-ray Tube Thermal Capacity :650KJ
Fluoroscopic Type: Automatic,Manual,Pulse
1Mega pixel CCD camera + 9“ Canon image intensifier 23 inch monitor Digital working station
Power Supply :220V 50HZ/60HZ
