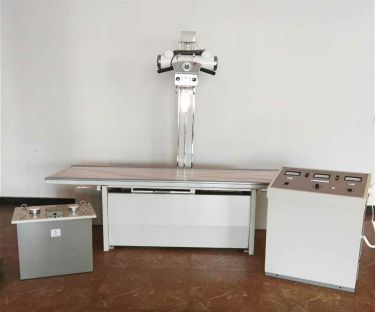

200mA Four-way Movable Bed X ray Machine AJ-200BZ
Main features:
1. Single bed with single bulb
2. High visual and operational Console with tube voltage ,tube current, and photography time display on the LCD monitor
3. Prestore 8 kinds of photograph parameters and select, modify, store the parameters under condition of choice
4. Auto power and voltage control, kV continuous adjustable, auto Fault Alarm
5. Premier high voltage with high power SCR zero control circuit
6. X-ray tube assembly is equipped with tangential-pipe kits
7. Photography bed, column, Vibration Filter limiter intergrated equipment without necessity of up-and-down tunnel
8. Photography bed can be moved both laterally and vertically, column can turn 4*90°
9. Function of load chains, exposure time control, start and stop rotating anode, Preheat filament, subassembly temperature control, etc.
10. Package(L*W*H): 244cm *113cm*102cm, 2.81m³,N.W.: 600kg G.W.: 750kg
Technical data:
Item
Content
Index
Demand of power supply
Voltage frequency
380V/220V±10 50Hz±0.5Hz
Internal resistance
220V:0.25Ω
Power supply
Adjustable range
380V±10at380V; 220V±10at220V being adjustable continuously
Radiographic
Voltage
50-100kV
Current
Small focus 50mA,100mA
Big focus 50,100,150,200mA
Time
0.04-6.3s,20grades together grading according to R10coefficient
High-voltage generator
Capacity
15kVA(instantaneous)
Max DC output voltage
100kV
Max DC output current
200mA
X-ray tube
Model
XD51-20.40/125
Focus
Small focus:1×1mm,
Big focus:2×2mm
Radiographic table
Table face(L×W×H)
2000mm×710mm×700mm
Moving range of table face
620mm×200mm
Ray-filter
Travel (in length):620mm
(in breadth):200mm
Grid density N28
Convergence distance of 100cm
Grid ratio R8
Pillar of X-ray tube unit
Moving in length along radiographic table
1800mm or 1600mm
Distance to ground as moving up and down (along upright post)
630mm~1750mm
Rotary around the center of cross arm
±180º
Rotary around the shaft line of
X-ray annular tubes
-10º~60º~+120º
Max size of cassette for radiography
356mm×432mm(14"×17")
