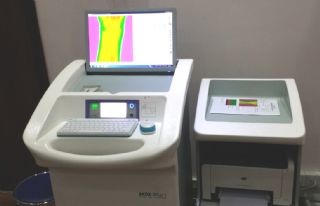

DEXA-BMD Measurement
Golden standard of bone rarefaction diagnosis and treatment
DEXA: Dual-Energy X-Ray Absorption Measurement
BMD: Bone Mineral Density
FEATURES
Advanced Test Technology
Adopt advanced sector scanning technology
Shorter than 5S standard examination time and smaller than 1% accuracy deviation
High-definition scanning image
Rational Structure Design
Outstanding streamlined design
Special handle and 360 degree steering wheel design provide convenient movement
Unique Innovation Idea
Unique push-pull examination entrance design allows the examined person to position arm conveniently
Position display is equipped to protect the high efficiency of the examination and the precision of the result
Flexible Operation Mode
Close table mode: built-in display and keyboard are integrated to save space
Remote table mode: the equipment and the computer are used separately to accord with daily use habit
Enclosed X-Ray Scanning
Whole instrument enclosed protection design
The examined person to receive radiation is less than 1% of conventional equipment
Multifunction Software
Edit diagnosis and treatment information
Fast search for historical data
High-speed data collection
Reference value of normal bone mineral density
Automatic diagnosis of the system
TECHINCAL PARAMETERS
Performance
Measurement method Dual-energy X-ray absorption (DEXA)
X-ray source High frequency and small focal point
X-ray detector Linear dual-energy X-ray detector
Scanning part Forearm remote end
Scanning manner Flabellum and line scanning
Scanning time 5s
Repeat precision Deviation less than 1%
Accuracy Deviation less than 1%
Requirements of standard configuration
Operation system Windows XP
Internal memory 2GB
Memory More than200G
Display 19’’
Communication port USB 2.0
Dimension and weight of the product
Dimension :
Close table mode: 660*600*1270mm
Remote table mode: 660*600*1030mm
Weight:
Close table:99Kg
Remote table:85Kg
