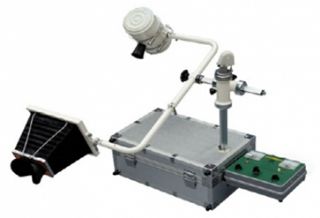

This machine is shock-proof, ray-proof, single focus and self-rectified x-ray unit.
It applies to medical fluoroscopy and radiography on mouth, cavity bone, heart, skull as well as contraceptive ring.
Main Specifications
* Max fluoroscopy: 75KVp 3-5mA (discontinuous use)
* Max radiography: 75KVp 10ma 6sec (interval time 3minutes) (Routine fluoroscopy condition: 65KVp 3mA)
* Power Supply: 220v±10% ,50hz,1KVA
* Current: For fluoroscopy2a(discontinuous)
For radiography6a(instantaneous)
* Size of screen: 203mmx254mm
* Range of movement: vertical:220mm; horizontal:130mm
* Tube turning angle: Vertical360, horizontal 320
* Volume: 50cmx 31cmx18cm
* Weight:25kg
