Reverse Osmosis System
Capacity: 500 L/H ,1000 L/H,2000 L/H,3000 L/H,4000 L/H,5000 L/H,6000 L/H,7000 L/H,8000 L/H,10T/H,12T/H,15T/H

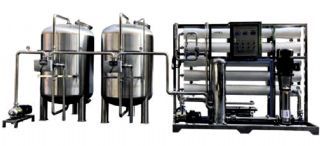

The photo is 10T/H two-stage Reverse Osmosis System photo,the photo is for reference only.
Osmosis is a naturally occurring process in which liquids spontaneously flow from a solution with a lower concentration (fresh water) to a solution with a higher concentration (such as seawater). Reverse osmosis is when the liquid flows in opposite directions between membranes.
Reverse osmosis equipment uses a high-pressure pump to pressurize the high-salinity solution side after the raw water passes through the pretreatment system, and uses a reverse osmosis membrane (RO membrane) with a pore size of 1/10000μm to force water molecules in a higher concentration (such as seawater) to flow through the membrane in the opposite direction to the lower concentration (fresh water) side. Finally, it is separated into extremely low-concentration water (that is, pure water) for use and higher-concentration water for discharge or resource reuse.
At the same time, Reverse osmosis equipment removes large particles, suspended matter, colloids, organic matter, taste, bacteria, viruses, heavy metal ions and other harmful substances in the water and 99% of dissolved salts. The system desalination is as high as 97% or more, and the conductivity of the outlet water reaches ≤10μs/cm.
| Regulating wheels: | These are used to adjust the flow rate or pressure in a system, ensuring optimal operation conditions. |
| PLC Touch Screen: | A programmable logic controller (PLC) with a touch screen interface provides an intuitive way to control and monitor the water treatment process. |
| Two-stage RO system: | As mentioned earlier, this system uses the output from the first stage as feed for the second stage, resulting in higher purity water with a lower conductivity. |
| PH adjustment anti-scale: | This component is crucial for adjusting the pH level of the water to prevent scaling and corrosion within the system. |
| Automatic cleaning system: | This system is designed to periodically clean the membranes and filters, extending their lifespan and maintaining efficiency. |
| Auto or manual control valve: | These valves allow for the regulation of fluid flow, either through automated processes or manual operation. |
| U-PVC or stainless steel pipe: | Pipes made from these materials are used to transport water within the system, with U-PVC being cost-effective and stainless steel offering corrosion resistance. |
| UV sterilizer/Ozone Generator: |
These are disinfection methods used to eliminate bacteria and viruses in the water, ensuring its safety for consumption or use. |
| Dosing system/Water Softener: | A dosing system is used to add chemicals at precise rates, while a water softener removes hardness ions, improving water quality. |
| PE or stainless steel raw/pure water tank: | Tanks made from these materials store raw or purified water, with PE being lightweight and stainless steel providing durability and resistance to corrosion. |
| FRP or stainless steel pre-treatment tank: | These tanks are used for the initial stages of water treatment, with FRP (Fiberglass Reinforced Plastic) being resistant to corrosion and stainless steel offering strength and longevity. |
| System Performance: | |
| 1 | RO Membrane use Vontron brand,Stable water quality and long service life |
| 2 | Brand CNP Pump，Stable power, not easy to damage |
| 3 | Runxin automatic backwashing valve,high precision control |
| 4 | SS pipe adopt 1side welding and 2 side molding ,so bacteria will not grow inside |
| 5 | One-key operation of the circuit box, no need for multiple operations, easy to use |
| 6 | Mitsubishi/Siemens PLC electric control,factory self-programming,stable system, lifetime after-sales service |
| 7 | Detection of various indicating instruments real-time monitoring of equipment and normal operation of water quality |
| 8 |
Clear current circuit layout,Humanized corresponding wire label marking |
