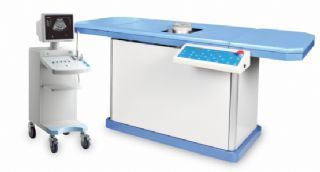

Extracorporeal Shock Wave Lithotripte rESWL-5B
I .Device name: Electromagnetic extracorporeal shock wave lithotriptor
II .Positioning method: ultrasonic B.
III.Application: Efficient electromagnetic shock wave source, mainly for kidney stones, ureteral calculi and bladder stones
IV.Technical parameters:
(I)Mature shock wave generating device
1. The high-voltage discharge treatment voltage: 10-18KV
2. Focal shock wave peak pressure: 20 ~ 50MPa
3. Expansive sound pressure peak: ≤3.5Mpa
4. The shock wave pulse width: ≤1μs,
5. The shock waves pulse front edge: ≤0.5μs
6. shock Focus range: Radial ≤ ± 7mm; axial: -35mm ~ + 50mm
7. Treatment depth: ≥110mm
(II)Ultrasonic B location system:
1. Probe feed range: 0 ~ 50mm
2. Deviation of the actual focus and monitor positioning mark: ≤ 2mm
(III) Operating system
1.Bedside operating system
2.Continuous Trigger frequency range: 0.5-2Hz continuously adjustable
3. Trigger mode: manual, automatic
4. Pulse count range: 0-9999
5. Long-life touch button control
6. Advanced trigger discharge system, long life discharge switch
(IV) Motion parameters of the treatment bed and shock wave source
1.The treatment bed load: ≥135kg
2.Wave source Lateral movement:0~100mm
3.Wave source longitudinal motion: 0 ~ 100 mm
4.Wave source lifting motion: 0 ~ 120 mm
5.Wave source slope motion: 0 ~ 80 mm
6.Wave source flip motion:0 ~ 20°
(V) Power supply parameters
1. Power Phase: Single phase
2. Power supply voltage: AC 220V ± 10%
3. Power frequency: 50Hz ± 1Hz
4. Maximum power: 1000VA
V.Unique advantages
★ARM Intelligent, integrated operating system
★Wave source three-dimensional motion (Six directions)+ slope motion + flip motion (patent certificates)
★Stable Mechanical motion system, low noise
No. |
Name |
Number |
Remarks |
configuration |
Main frame(treatment bed,motion system,High-voltage capacitance box,ultrasonic B positioning system,water cycle system,Electrical system including power supply system,The electronic control system,High voltage generator) |
1 set |
|
spare parts |
Spare Water bladder |
3 piece |
Big 1. small 2. |
Positioning plate |
1 set |
|
|
Separate Fixed focus frame |
1 set |
|
|
Grounding cable |
1 piece |
|
|
Insurance tube |
A total of 8 |
10A,3A,1A each 1 piece;6A 4 piece,2A 1 piece |
|
Travel switch |
2piece |
|
|
TLP521-4,113, |
each 3 piece |
|
|
NE555 |
5 piece |
|
|
704 Silica gel |
1 piece |
|
|
PTFE tape,Solder wire |
each 3 roll |
|
|
Screw |
some |
|
|
tools |
Inner hexagon spanner |
each 1 piece |
|
10 inch adjustable wrench |
1 piece |
|
|
SLOTTED screwdriver、PHILLIPS screwdriver |
each 1 piece |
|
|
documents |
User manual |
1 piece |
|
Installation form. customer acceptance form |
1 set |
|
|
Product test report. quality certificate |
1 set |
|
|
Business license. registration certificate. production license |
1 set |
copy |
I. The whole machine adopts ARM intelligent embedded control system.
Embedded is to install a micro-computer in the equipment. Our company uses the newest embedded control system and the advanced ARM processor. Rather than other company uses Monolithic integrated circuit or IC, separating components such backward technology
control system, causing high- pressure table (energy) displays not stable; Unable to realize the self-diagnosis function; High failure rate; Components easily damaged and poor stability, etc..
Embedded control system has the advantage of making the device more intelligent, many of the actions we can to assist through the computer. Advantages:
1. Triggering counting adopts decrement count down automatic stop triggering.
2. High- pressure table displays stable.
3. Automatically tracking voltage, automatic voltage regulator .
4. Automatically displaying the location of the malfunction.
II. Three-dimensional motion (six directions) + Slope motion+ Turnover motion (12 directions movement)
This movement can make the focus of the shock waves along the centerline of the ultrasound probe direction. For the operator visually reflect as "move along the direction of the ultrasound probe focus looking for stone" instead of the traditional "through two direction in turn operations" to achieve such effect. It takes more production cost, but greatly reduces the difficulty of operators. This unique way of positioning is the self-satisfied work of the design in our lithotripter of the company, highly praised by users. This function has been also granted national patent certificate.
