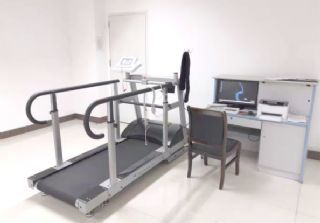

Treadmill Stress ECG Test System AJ-STR900
Features:
1. 12 channel synchronous recording;
2. Interfere-free applied to assure the based line stability;
3. Optional standard or self-designed test protocol;
4. Synchronous display 1 channel, 3 channel, 6 channel or 12 channel ECG;
5. Freeze, store and print 12 channel ECG, Input the blood value at anytime;
6. Display and analyze automatically ST deviation value and heart rate and blood pressure trend graphic per minute;
7. Display the change of 12 channel ST segment in process of testing.
Specifications
1. Weight: 150kg
2. Load: approx.150kg
3. Power supply: 220 ± 5% (AC)
4. Power frequency: 50Hz
5. Power: Max.1650W
6. Range of speed: 0-10km/h
7. Range of grade: 0-25%
8. Adjustment sensitivity: 0.2%
Comply with ETL. ESA. CE and IEC-501 international standard system characteristic.
Standard Configuration:
No. |
Name |
Qty. |
1 |
Treadmill M2100 |
1 |
2 |
Software & User manual CD |
1 |
3 |
Waistband |
1 |
4 |
ECG Collector |
1 |
5 |
Cover of ECG Collector |
1 |
6 |
12-lead ECG patient cable |
1 |
7 |
Printer |
1 |
8 |
Commerial PC |
1 |
9 |
Treadmill control cable |
1 |
10 |
ECG data extension cable and power cable |
1 |
11 |
Ground wire |
1 |
12 |
Wooden packing box |
1 |
13 |
Inspection certificate |
1 |
Optional Configuration:
1.Automated Blood Pressure Monitor Tango M2
2.SPO2 modual (Radical-7) made in America Masimo
