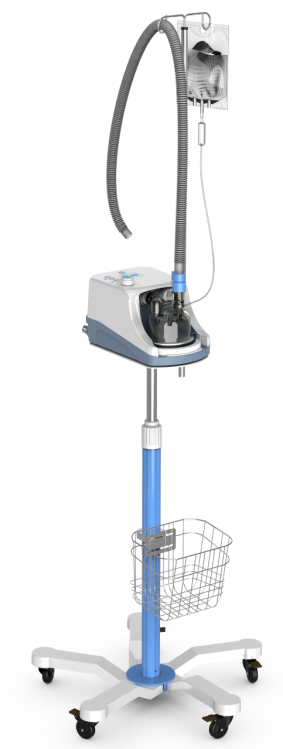

High Flow Respiratory Humidifier with Trolley AJ- HF80

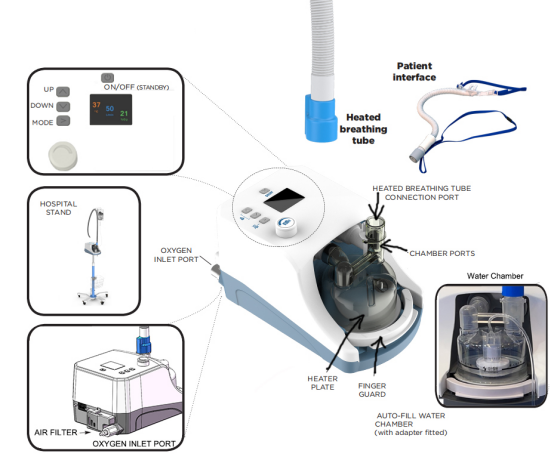

With its integrated design,our High Flow Respiratory Humidifier aims to provide
optimal oxygen therapy to the patient with spontaneous breathing ,delivering high flow mixed gases
through nasal interface of various size.
FEATURES
Versatile and Simple to operate
*Three-level temperature control
*Flow rate automatic compensation
*Integrated ultrasonic real-time oxygen concentration monitoring without oxygen cell consumption
*Wide range of gas flow and oxygen concentration can be adjustable according to clinical needs and displayed digitally which can be observed visually
Safe and Reliable
*Overheat protection( Dry burning-resistant protection)
*Equipped with high-density filter cotton and cross infection can be prevented.
*Simple to be disinfected.Only commonly used water-soluble disinfectant and soft cloth are needed to clean the humidifier and parts
SPECIFICATIONS
Power source |
AC 90V-260V |
Supply frequency |
47-63Hz |
Power rate |
150W±15% |
Recommended ambient temperature range |
Temperature:18℃-26℃ Relative humidity≦80% |
Output gas temperature |
Output temperature:31℃~37℃ Tolerance:±2% Level1:31℃ Level2: 34℃ Level3:37℃ |
Heater plate over-temperature cutout |
115±5℃ |
Humidification chamber |
Auto-fill,maximum volume 240ml |
Oxygen concentration monitoring range |
21%-100% Tolerance:±5%(±3%FS) |
Flow range |
2-80L/min Tolerance:±8% |
Auditory alarm |
≥55dB(A) |
Warm-up time |
Less than 30 minutes Less than equal to 10 minutes to 31℃ |
