5kW 100mA Mobile Veterinary X Ray Machine AJ-VX100M
(Suitable for Small Animals)
5kW 100mA Mobile Veterinary X Ray Machine Digital Type with Wireless Flat Panel
5kW 100mA Mobile Veterinary X Ray Machine Digital Type with Wired Flat Panel
5kW 100mA Mobile Veterinary X Ray Machine Analog Type

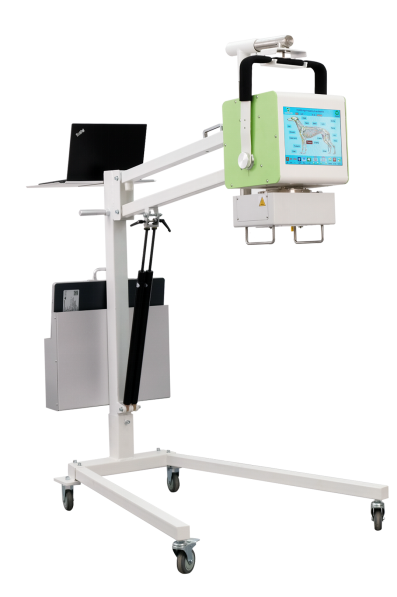

Digital Type Photo
【Remarks】
1. Main unit packed in wooden cage,Size: 51*71*55cm,Net weight: 47KG
2. Steel stand packed in carton,Size: 116*47*20cm,Net weight: 32KG
3. Flat panel packed in carton,Size: 55*55*6cm,Net weight: 7KG
4. Laptop packed in carton,Size: 58*36*14cm,Net weight: 4KG
5kW 100mA Mobile Veterinary X Ray Machine Digital Type Parameters
Maximum output power |
5kW |
|
Power supply |
AC220V±10%, 50/60Hz±1Hz |
|
Power |
220V/50Hz(Wire diameter >4mm2;Internal resistance <0.5Ω) |
|
mA adjustable range |
32-100 mA |
|
mAs adjustable range |
0.32~315mAS, stepping R’10 or 0.4 |
|
kV adjustable range |
40kV~110kV, continuous regulation, stepping 1kV |
|
Exposure time |
0.01~6.3s |
|
X-ray tube focus |
1.8*1.8mm |
|
Rotating speed / Heat capacity |
2800prm/42kHU |
|
Generator frequency |
30kHz |
|
Flat panel parameter |
Imaging Size |
17*17、14*17inch (wired and wireless) |
Pixel Pitch |
140um |
|
A/D Conversion |
16bits |
|
Spatial Rresolution |
3.6lp/mm |
|
Software |
Veterinary software |
|
Laptop parameter |
R3-4300U processor, 8G running memory, 256G solid state drive |
Digital images

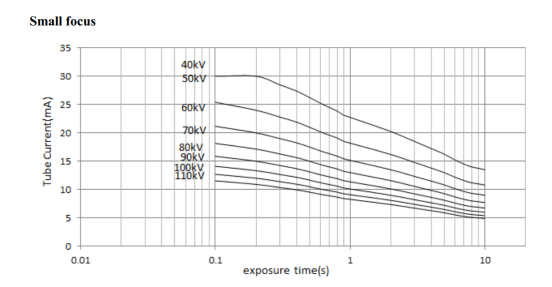

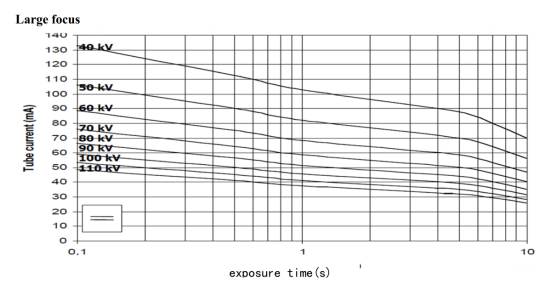

X-ray Curves Chart
Description:1、kV adjustable range is 40-10Kv, 0-40kV is optional.
2、The curves have excellent distribution and coordination to Kv/mA/S.

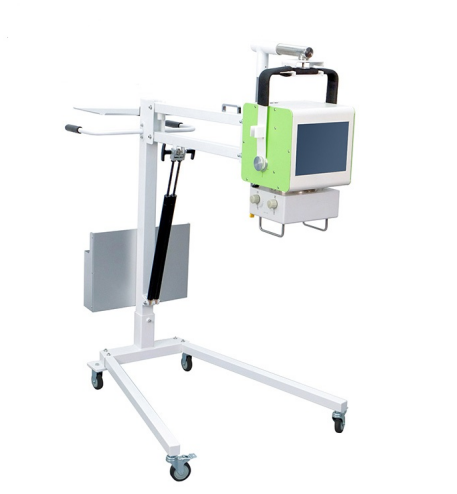

Analog Type Photo
5kW 100mA Mobile Veterinary X Ray Machine Analog Type Parameters
Maximum output power |
5kW |
Power supply |
AC220V±10%, 50/60Hz±1Hz |
Power |
220V/50Hz(Wire diameter >4mm2;Internal resistance <0.5Ω) |
mA adjustable range |
32-100 mA |
mAs adjustable range |
0.32~315mAS, stepping R’10 or 0.4 |
kV adjustable range |
40kV~110kV, continuous regulation, stepping 1kV |
Exposure time |
0.01~6.3s |
X-ray tube focus |
1.8*1.8mm |
Rotating speed / Heat capacity |
2800prm/42kHU |
Generator frequency |
30kHz |
