Applications
Meet the inspection and diagnosis of the primary hospital in the abdomen, obstetrics, gynecology, heart, urinary system, small organs, superficial, vascular, pediatric physical examination and other aspects.
Main specifications and system overview:
Operating system: ARM chip architecture, stable, concise and powerful
Three active probe sockets, able to select the inspection site
Display mode: B, B+B, B+M, M, 4B;
Screen: 15-inch, 1024*768, high-definition LCD screen
System language: Chinese, English, Spanish, French
Machine size: 579.1*710.69*1220.33mm
Net weight: 46kg

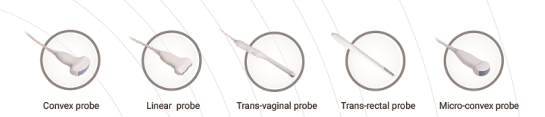

Probe options
Convex probe (C3-2): Central frequency is 3.5MHz
Multi-frequency: 2.0MHz/2.5MHz/3.5MHz/5.0MHz/, each frequency conversion corresponds to the corresponding harmonic frequency
(depth adjustment: ≥19 level, adjustment range 50-280mm)
Linear probe (L3-2): central frequency is 7.5MHz
Multi-frequency: 6.5MHz/7.5MHz/8.5MHz/9.0MHz, each frequency conversion corresponds to the corresponding harmonic frequency
(depth adjustment: ≥ 6 levels , the adjustment range is 50-100mm)
Trans-vaginal probe (EC1-2): central frequency is 6.5MHz
Multi-frequency 4.0MHz/5.0MHz/6.5MHz/8.0MHz, each frequency conversion corresponds to the corresponding harmonic frequency
(depth adjustment: ≥6 levels, adjust Range 50-100mm)

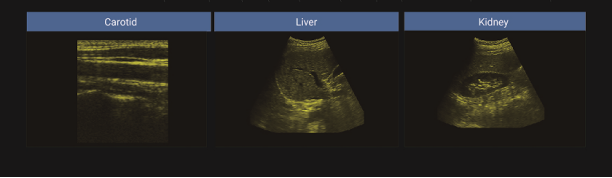

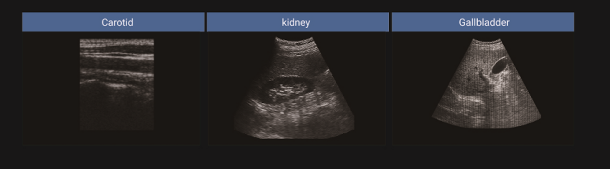

2D mode
Gain: 0-100, step 1 can be adjusted visually
TGC: 8-segment adjustable
Dynamic range: 0-120db
Scanning angle: 80-100
Focus: adjustable focus position, 4 focus points
Frame Correlation: 4-100
Speckle suppression: 0-50
Power: 40-100, step 4
Magnification: 1-16
Grayscale mapping: 1-19
Body mark: ≥109 kinds, support body position indicator
Pseudo-color: 28 kinds
With gravel positioning function, real-time measurement data
Support up and down flip, left and right flip, black and white flip
Scan speed in M mode: 1-63
Time setting: date time, date format, time format and other settings
Auto freeze setting
Automatic sleep time: 6-99 minutes
Image save format: BMP
Cine loop: 256
Measurement and analysis functions:
General measurement functions: distance, perimeter-ellipse, perimeter-track, area-ellipse, area-track
Specialist measurement functions: volume, angle, distance stenosis ratio, area stenosis ratio:
Abdomen: liver, portal vein diameter, common hepatic duct, common bile duct, gallbladder, pancreas, spleen, left kidney, left adrenal gland, left kidney cortex thickness, right kidney, right adrenal gland, right kidney cortex thickness, abdominal aorta diameter, abdominal aorta Bifurcation, iliac artery diameter.
Urology: left kidney, left adrenal gland, left kidney cortex thickness, right kidney, right adrenal gland, right kidney cortex thickness, prostate, left seminal vesicle, right seminal vesicle, left testis, right testis, ureter diameter, anterior bladder, posterior bladder, Prostate mass, testicular mass, epididymis.
Gynecology: uterine body, cervix, endometrial thickness, left ovary, right ovary, follicles.
Cardiac: left atrial diameter, left atrial upper and lower diameter, left atrial left and right diameter, right atrial upper and lower diameter, right atrial left and right diameter, left ventricle upper and lower diameter, left ventricle left and right diameter, right ventricle upper and lower diameter, right ventricle left and right diameter, left atrial area, Right atrial area, right ventricular end-diastolic diameter, right ventricular end-adaptor
diameter, aortic root diameter, aortic arch inner diameter, ascending aortic inner diameter, descending aortic inner diameter, and aortic isthmus inner diameter.
Obstetrics: gestational sac, biparietal diameter, head circumference, abdominal circumference, femur length, head-rump diameter, yolk sac, abdominal transverse diameter, abdominal thickness diameter, cerebellum diameter, diameter translucency, occipital-frontal diameter, posterior fossa cistern, Lateral ventricle, cerebral hemisphere, fetal weight, last menstrual period, depth of amniotic fluid, amniotic fluid index, placenta thickness, chest circumference, umbilical vein diameter, fetal kidney length, maternal kidney length, cervical length, neck fold, orbit, outer eye distance, inner eye Talar, humerus length, ulna length, radius length, tibia length, fibula length, clavicle length, vertebra length, middle phalanx, foot length, ear length, trunk, chest diameter, fetal heart circumference, fetal heart rate.
Small organs: left thyroid, right thyroid, left thyroid mass, right thyroid mass, isthmus thickness, left seminal vesicle, right seminal vesicle, left testis, right testis, testicular mass, epididymis, scrotal wall, left breast mass, right Breast mass, skin mass.
Pediatrics: liver, portal vein diameter, common hepatic duct, common bile duct, gallbladder, pancreas, spleen, left kidney, left adrenal gland, left kidney cortex thickness, right kidney, right adrenal gland, right kidney cortex thickness, abdominal aorta diameter, abdominal aorta Bifurcation, iliac artery diameter.
Graphic management system:
With U disk storage and host image storage function: Picture save format: BMP
Movie playback: ≥256 frames
Support report image export to U disk.
Ports:
VGA *1, VIDEO *1, USB *2
Configurations

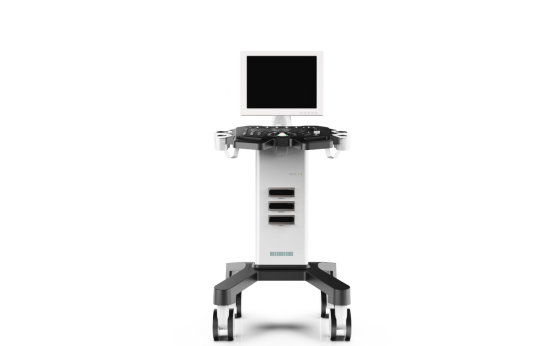

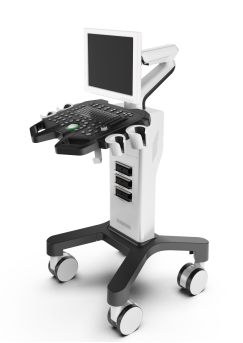

Cart-based ultrasound host *1
Probe options: C3-2 convex probe, L3-2 linear probe, EC1-2 trans-vaginal probe
Optional: Thermal Printer (SONY UP-X898MD)
