- - AJ-1269V

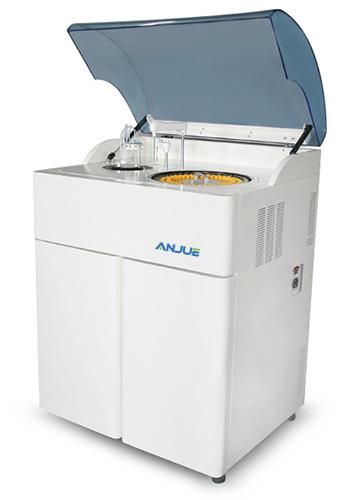

    Full Automatic Vertical Chemistry Analyzer
- FEATUES

  Compact cabinet design-Space Efficiency

  200 tests per hour-Time Efficiency

  Automated testing & Low Maintenance-Operation Efficiency

  150ul reagent consumption-Cost Efficiency

  Getting the right answer at the first time-Laboratory Efficiency

  Sampling probe

  · External & internal mirror polish, external & internal probe washing(reducing carry-over)

  · Dedicated sampling probe equipped with sensitive liquid sensor, timely feedback of reagent & sample residuals

  · Collision protection

  · Automatic probe depth adjusting

  Multi-functional sample & reagent tray

  · 80 reagent positions (40 for R1, 40 for R2)

  · 40 sample positions, micro cup & test tube can be used

  · Non-stop cooling system with peltier pad inside, 24 hours 2℃-14℃

  · Bar code reader(optional)
  、

  Reaction tray

  · 44 reaction cuvettes

  · Reaction volume as low as 150ul

  · Stable & accurate temperature(37±0.1 ℃) for reaction

  High precision ceramic syringe

  · Sample dispensing by frequency converting design

  · Permanent ceramic piston

  · Accurate dispensing as low as 0.1ul

  Excellent mixer design

  · Teflon coating mixer. No water dropping (reducing carry-over)

  · Excellent mixing effect with standard mixing procedure

  Washing station

  · 4 needles wash-station

  · Triple washing

  · Effective washing to ensure accurate result and valid diagnostics

  Powerful Software

  · User friendly software interface simple, easy-to-operation

  · Sample automatic dilution(decrease, increase, normal)

  · Masking tests when reagent or standard is exhausted

  · Calibrator auto-dilution

  · Linear & nonlinear calibration

  · Multi-points calibration up to 8 points

  · Quality control apply to Westgard, L-T plot, Cumulative

  · Real- time display of running status

  · Real -time display of status of reagent tray, sample tray  and reaction tray

  · Real-time updating of reagent residuals

  · Real-time marking of defective cuvette

  · Reaction result automatic checking and warning

  · Calibration result automatic checking and warning

  · Alarm log: Automatic alarm and record in alarm list with explanations during running process

  TECHNICAL SPECIFICATIONS

  General Information

  Machine type: Random access, open reagent & locked reagent (optional)

  Test speed: Constant 200 tests/hour (mono reagent or double reagent)

  Test principle: Colorimetric method, turbidimetry

  Test method: 1 point end, 2 point end, Fixed-Time, Kinetics

  Calibration type: Linear & nonlinear

  Sample & Reagent Unit

  Sample tray: 40 sample positions

  Sample cup type: Micro cup & test tube

  Reagent tray: 80 reagent positions(40 for R1 & 40 for R2)

  Sample volume: 2-30ul, step by 0.1ul

  Reagent volume: 20-300ul, step by 1ul

  Sample & Reagent bar code reader(optional)

  Reaction Unit

  Reaction tray: 44 high quality plastic cuvettes

  Reaction volume: 150ul-350ul

  Reaction time: 10 minutes

  Temperature: Peltier pad incubation system, reaction temperature (37℃±0.1 ℃)

  Cuvette washing: 3*4 steps automatic washing

  Mixing System

  Teflon coating mixer

  Optical System

  Light source: Halogen lamp

  Wavelength: 340nm; 405nm; 450nm; 505nm; 546nm; 578nm; 630nm; 700nm(4 more options)

  Absorbance range:  0-4.0 Abs

  Resolution: 0.0001 Abs

  Operation System Requirements

  Operation system: Windows XP & Windows 7

  Interface: USB

  Working Conditions

  Power supply: AC 110/220V ± 10%, 50/60 Hz, 650W

  Water consumption: 6L/hour(maximum)

  Dimension: 650mm*700mm* 1200mm(L*W*H)

AJ-1269V

Full Automatic Vertical Chemistry Analyzer
