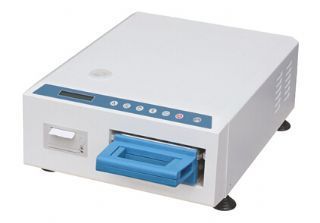

Your position：Home > Products > Dental Equipments > Cassette Autoclave
Application
It can be used in medical organizations like dental clinics, ophthalmology department, E.N.T. department, gynecology department, surgical operation room to sterilize the surgical instrument, glassware etc.
Mainly Performance and Characteristics
Fast: 9~15 minutes working cycle, faster than normal steam sterilizer.
Safe: The short heat time for medical instrument, make the instrument safety and keep the working life longer.

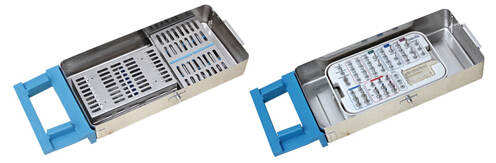

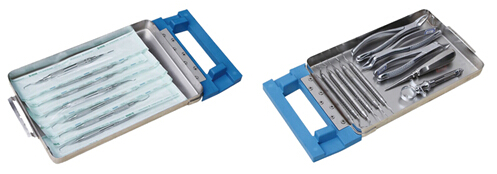

Convenience: Simple operating, sterilize cassette can be used as loading and transport tools, and storage. Easily sterilize and use.
Micro-computer control technology, LCD screen, touch button input
Temperature, pressure, time, working status, error alarm display on screen
Displace, heating, pressure rising, sterilizing, and exhaust, dry. Whole cycle is controlled by computer and automatic running.
Build-in steam generator, steam source is not needed from outside.
Digital printer can print the cycle time and various parameters of the running cycle.
Multiple Sterilize Cycle Provide
Our sterilizer provides 4 kind of automatic sterilize cycle. Each cycle designed for one specific instrument.
|
Cycle Name |
Specific Instrument |
Sterilization Temperature |
Sterilization |
|
Unwrapped Cycle |
Metal instrument like pliers, bur, teeth cleaning tools, tweezers etc |
134℃ |
4min |
|
Wrapped Cycle |
Wrapped(paper/paper or paper/plastic) solid material and metal instrument |
134℃ |
10min |
|
Non-metal |
Plastic |
121℃ |
20min |
|
Big-size Instrument |
Big-size unwrapped metal-instrument |
134℃ |
8min |
Automatic Detection
If the parameters like temperature, pressure, time haven’t achieved the setting value, or the autoclave has problem when running, the micro-computer system will halt the cycle running and display the problem on the LCD screen.
Specifications
Design pressure: 0.28Mpa
Design temperature:150℃
Sterilization Temp range: 105-136℃
Temperature uniformity: ≤±0.5℃
Temperature display precision: 0.1℃
Chamber material: SUS304 Stainless Steel
Maximum Working Pressure: 0.24Mpa
Water Tank Capacity: 3.4L
2 Liter
Sterilization chamber volume：2 L
Chamber Dimensions（L×W×H）: 280*180*38mm
Overall Dimensions（L×W×H）: 590*460*190mm
Net Weight：40 kg
5.2 Liter
Sterilization chamber volume：5.2 L
Chamber Dimensions（L×W×H）: 380*180*80mm
Overall Dimensions（L×W×H）: 590*460*190mm
Net Weight：45 kg
6 Liter
Sterilization chamber volume：6 L
Chamber Dimensions（L×W×H）: 490*180*80mm
Overall Dimensions（L×W×H）: 590*460*190mm
Net Weight：50 kg
