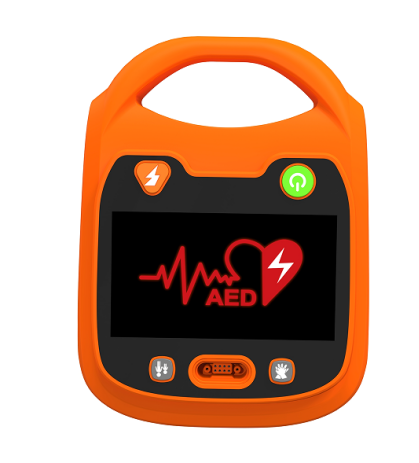

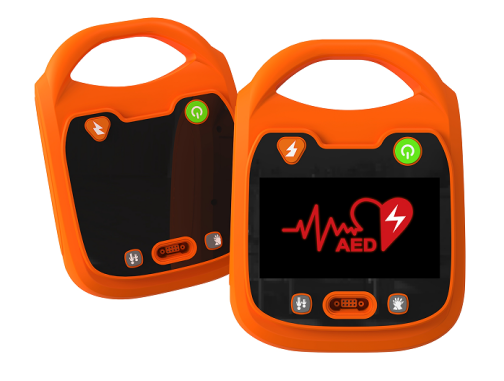

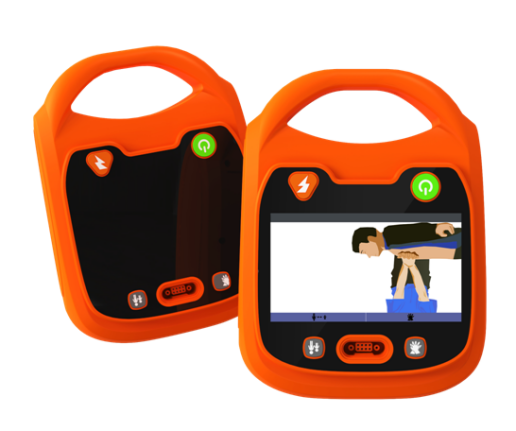

Automatic External Defibrillator AED 100
Defibrillator
Category |
Specification |
Output |
Biphasic Truncated exponential |
Energy Sequence(child) |
50J,50J,50J |
Energy Sequence(Adult) |
150J,200J,200J |
Charge Time |
6 sec. to 150J |
8 sec. to 200 J(New battery) |
|
Analysis Time |
6 sec. |
The maximum time from the initiation of rhythm analy-sis to readiness for discharge with a new battery. |
Less than 10seconds |
The maximum time from the initiation of rhythm analy-sis to readiness for discharge after 6 shocks. |
Less than 10 seconds |
The maximum time from initially switching power on toreadiness for discharge. |
|
Visual Prompts |
LED prompts;Automatic Self-test |
Controls |
Four buttons :On/Off, Shock,Adult/child,CPR |
Output Energy Accuracy |
±10% into any impedance from 25 to 175Q |
The Maximum Voltage |
1400±50V |
Output disabled when the patient impedance is outsidelimits |
20Ω to 200Ω |

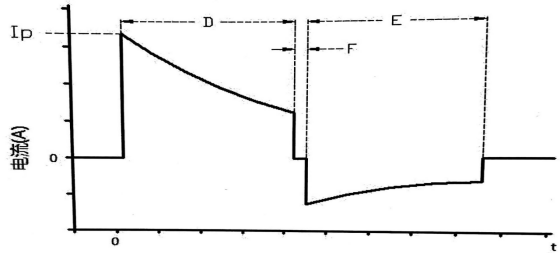

Waveform detail
Output Energy(J) |
Patient Impedance(Ω) |
Phase1 (ms) |
Ip1(A) |
Phase2 (ms) |
Ip2(A) |
Interval (ms) |
50 |
25 |
6 |
20.8 |
4 |
11.6 |
0.7 |
50 |
6 |
12.6 |
4 |
9.4 |
0.7 |
|
75 |
6 |
9.6 |
4 |
7.8 |
0.7 |
|
100 |
6 |
8 |
4 |
6.8 |
0.7 |
|
125 |
6 |
7 |
4 |
6.2 |
0.7 |
|
150 |
6 |
6.4 |
4 |
5.8 |
0.7 |
|
175 |
6 |
5.8 |
4 |
5.3 |
0.7 |
Output
Energy(J)
Patient
Impedance(Ω)
Phase1
(ms)
Ip1(A)
Phase2
(ms)
Ip2(A)
Interval
(ms)
200
25
6
41.7
4
19.4
0.7
50
6
25.1
4
17
0.7
75
6.3
18.8
4.2
14.2
0.7
100
8.3
14.2
5.6
10.7
0.7
125
10.3
11.3
6.9
8.6
0.7
150
12.3
9.5
8.3
7.2
0.7
175
14.4
8.1
9.6
6.2
0.7
Battery
Part No |
CR123A-4x2 |
Non-rechargeable |
2.8 Ah |
Capacity |
120 discharges at 200 Joules |
Shelf Life (25°C+15C) |
5 years standby (after installation) |
Physical
Dimensions |
280 x 209 x 80 mm |
Weight |
2.5 kg |
Operating Temperature |
0°C to 40°C |
Operating Humidity |
Relative humidity between 30% and 95%(non-condensing) |
Storage Temperature (without battery) |
-20°C to 55°C |
Storage Humidity (without battery) |
Up to 93%(non-condensing) |
Package
Single package size: 40*30*17.8cm
6 unit per carton, package size: 62.5*42.5*56.5cm, total gross weight 21 KG
