JINBEI HIACE WARD TYPE AMBULANCE
(EURO VI, PETROL, JKC5026XJHA6L0)
A. Technical parameters
|
||
|
Model |
JKC5026XJHA6L0 |
Size and Weight |
Overall dimensions (mm) |
4495×1680×2150(mm) |
Patient compartment (mm) |
2600 x 1500 x 1500 |
|
wheelbase (mm) |
2945 |
|
curb mass (kg) |
1390KG |
|
GVW (kg) |
1980KG |
|
Tyre |
195/65R15 |
|
Engine and gearbox
|
Fuel type |
petrol |
Engine |
SWC15M |
|
Displacement cm3 |
1451 |
|
Emission standard |
GB18352.6-2016 CHINA Ⅵ |
|
Rated power (kw) |
75 |
|
Gearbox |
5 speed, manual |
|
ABS+EPS |
||
Central control + power window |
||
MPS |
||
Front fog Light |
||
Air conditioning |
B. Standard configurations of ambulance
Functions |
|
Qty. |
|
Parts |
Descriptions |
||
Alarm system |
LED flashing alarm light |
100W alarm light、LED flashing |
1 |
Central power distribution system |
Intelligent inverter |
500W |
1 |
Patient’s compartment |
Partition wall |
High polymer material with observation window |
1 |
Medical floor |
environmental protection medical floor, anti-skid, acid and alkali resistance, anti-corrosion, can be rinsed |
1 |
|
IV hanger |
Installed on the vehicle roof |
1 |
|
Vehicle-mounted fire extinguisher |
1KG |
1 |
|
Garbage bin |
Stainless steel |
1 |
|
Anti-collision guard board |
Anti-collision guard board for stretcher |
1 |
|
UV disinfection light |
|
1 |
|
illuminating system |
|
illuminating light |
2 |
|
Stretcher |
· Push-lift stretcher and fixture devices |
1 |
|
Oxygen bottle |
10L Oxygen cylinder with oxygen terminal
|
1 |
|
Medical cabine |
Light environmental protection material |
1 |
· Left oxygen bottle cabinet |
Light environmental protection material |
1 |
|
|
Seats |
Single seat on the left side with three-point safety belt |
2 |
|
A/C |
Front and rear A/C |
1 |
Ventilation fan |
Installed on the vehicle roof |
1 |
|
|
Reflective strip in waist of body |
Blue |
1 |
· Frosted film
|
· 2/3 White frosted film
|
1 |

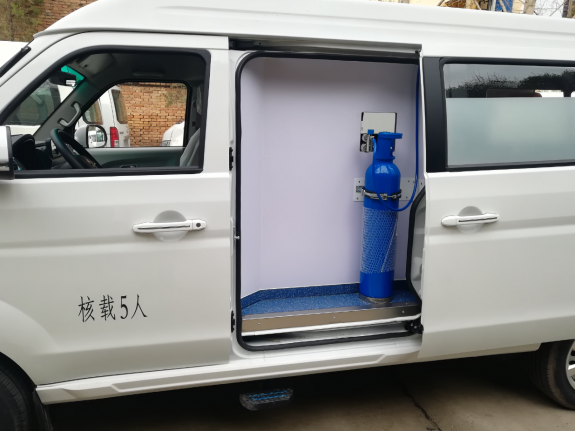

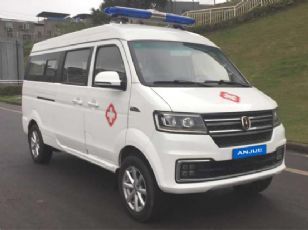

Reference Pictures of Ambulance
