IVECO ICU Ambulance
(EURO V, Diesel, NJ5045XJHQA)
Parameters and specifications of the Vehicle
A |
Dimension and Weight |
|
1 |
Overall Dimension (mm) |
4910 x 2000 x 2695 |
2 |
Dimension of Patient’s compartment (mm) |
2300 x1750 x1600 |
3 |
GVW (kg) |
3550 |
4 |
Turning diameter(m) |
9.9 |
5 |
Approach Angle/Departure Angle (°) |
21/14.5 |
6 |
Complete vehicle curb mass (kg) |
|
7 |
Front/rear suspension (mm) |
960/1150 |
8 |
Front Wheel tread (mm) |
|
9 |
Rear Wheel tread (mm) |
|
10 |
Minimum ground clearance (mm) |
195 |
11 |
Wheelbase (mm) |
2800 |
12 |
Max speed (km/h) |
120 |
13 |
Number of seats |
3-9 |
14 |
Axle Load (kg) |
1400/2150 |
15 |
Qty. of tires |
4 |
16 |
Tires size |
215/75R16LT |
B |
Engine |
|
1 |
Engine model |
SOFIM8140.47Z5 |
2 |
Type of Fuel |
Diesel |
3 |
Engine type |
L type, high pressure common rail, supercharged intercooled diesel engine
|
4 |
Engine Manufacturer |
NAVECO |
5 |
Emission standard |
GB17691-2005国V, GB3847-2005 |
6 |
Displacement (ml) |
2499 |
7 |
Rated power (KW) |
90 |
C |
Suspension and brake system |
|
1 |
Gearbox |
manual 5 speed |
2 |
Brake system |
Front ventilation disc, rear disc ·
|
3 |
Suspension system |
Front transverse plate spring, rear multiple spring
|
4 |
Chassis |
NJ6485ACM |
Standard configuration of vehicle |
||
1 |
Seat belt alarm warning system |
|
2 |
Double rear door |
|
3 |
Front power window |
|
4 |
Four wheel disc brake
|
|
5 |
ABS 9.0+EBD |
|
6 |
high-mount stop lamp |
|
7 |
High power heating and cooling air conditioning
|
|
8 |
Rear board pedal
|

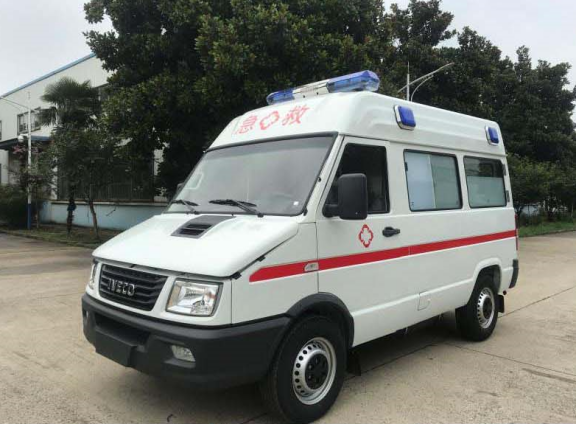

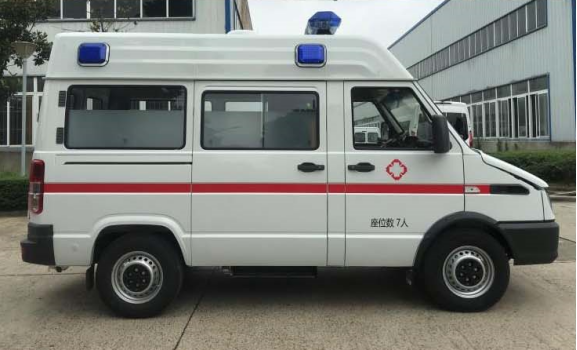

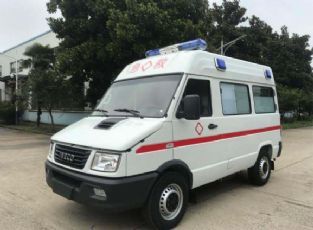

Reference pictures of ICU ambulance
