VECO DΛILY HIGH ROOF ICU AMBULANC
(EURO VI,XLG5045XJHC6)
Parameters and specifications of the Vehicle
Specification Requirement |
||
1 |
It conforms to the industry standard of QC/T457-2013 ambulance issued by the ministry of industry and information technology. |
|
2 |
To provide the announcement of "Road motor vehicle production enterprises and products" issued by ministry of industry and information technology |
|
A |
Dimension and Weight |
|
1 |
Overall Dimension (mm) |
5495x2011x2785 |
2 |
Dimension of Patient’s compartment (mm) |
3100x1750x1850 |
3 |
GVW (kg) |
3550 |
4 |
Turning diameter(m) |
12.1 |
5 |
Approach Angle/Departure Angle (°) |
17.6/17 |
6 |
Complete vehicle curb mass (kg) |
2880(8) |
7 |
Front/rear suspension (mm) |
967/1228 |
8 |
Front Wheel tread (mm) |
1738 |
9 |
Rear Wheel tread (mm) |
1704 |
10 |
Minimum ground clearance (mm) |
180 |
11 |
Wheelbase (mm) |
3300 |
12 |
Max speed (km/h) |
145 |
13 |
Number of seats |
8人 |
14 |
Axle Load (kg) |
1620/1930 |
15 |
Qty. of tires |
4 |
16 |
Tires size |
215/75R16LT |
B |
Engine |
|
1 |
Engine |
F1AE8481G |
2 |
Type of Fuel |
Diesel |
3 |
Engine Manufacturer |
NANJING AUTOMOBILE(GROUP) CORPORATION |
4 |
Emission standard |
GB17691-2018国Ⅵ,GB3847-2005 |
5 |
Displacement (ml) |
1994ml |
6 |
Maximum power (KW) |
107 |
C |
Suspension and brake system |
|
1 |
Gearbox |
manual 5 speed |
2 |
Brake system |
Front ventilation disc, rear solid disc ·
|
3 |
Suspension system |
McPherson independent front suspension |
4 |
Service Brake |
Double pipe, vacuum booster, hydraulic lever
|
5 |
Parking Brake |
Located on the rear brake, mechanical cable control · wheel |
6 |
Chassis |
NJ6556ECMJ whole body |
Standard configuration of vehicle |
||
1 |
Side sliding door |
|
2 |
Central control door lock |
|
3 |
Front power window |
|
4 |
Electrical foot step on side door |
|
5 |
Parking sensor |
|
6 |
Steel wheel hub |
|
7 |
Integrated side window |
|
8 |
Driver airbag + Pre-tightening seat belt |
|
9 |
USB+RADIO |
|
10 |
ABS +EBD |
|
11 |
Front fog light |
|
13 |
Technical Parameter of ICU Ambulance

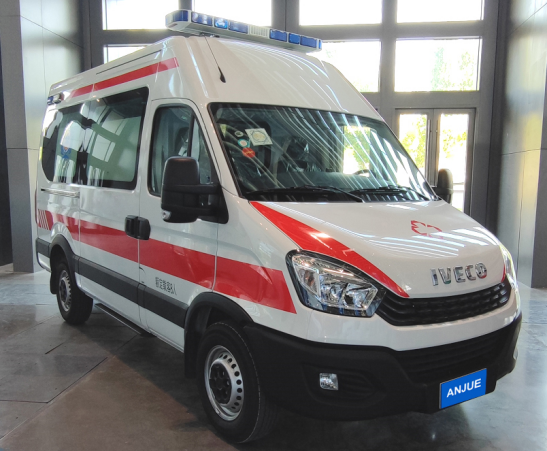

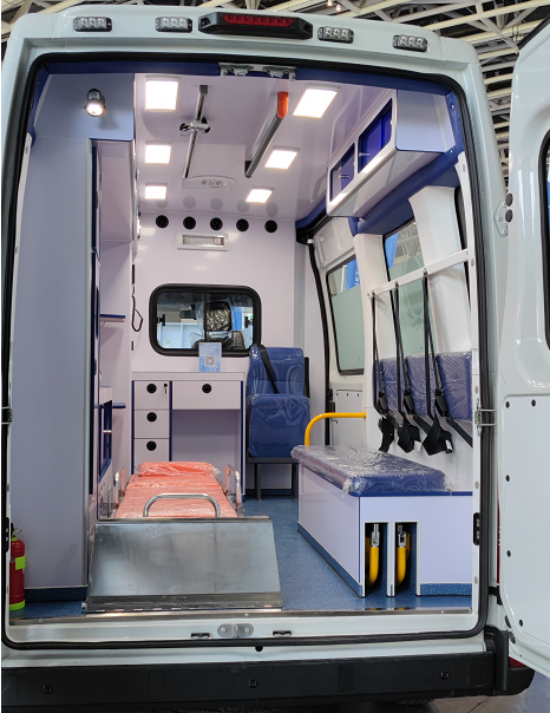

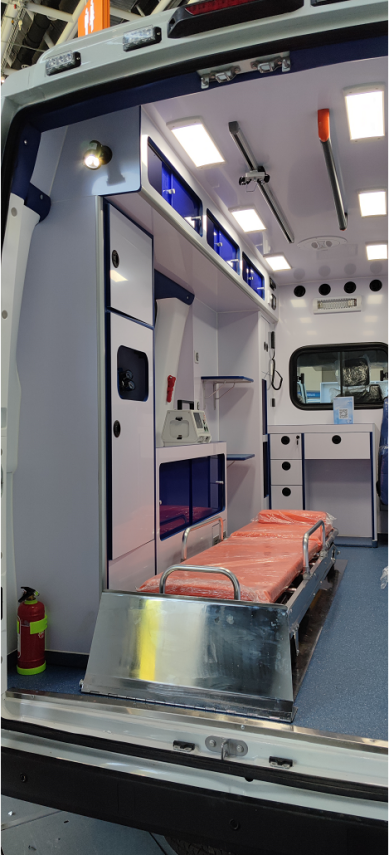

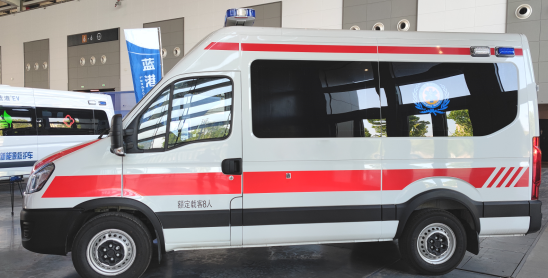

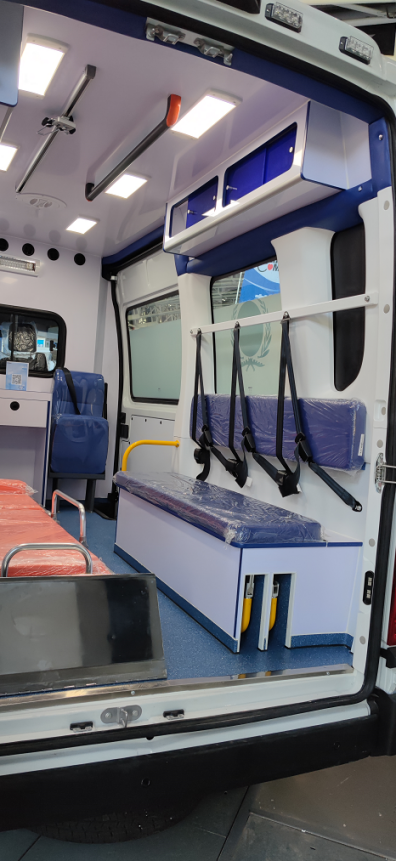

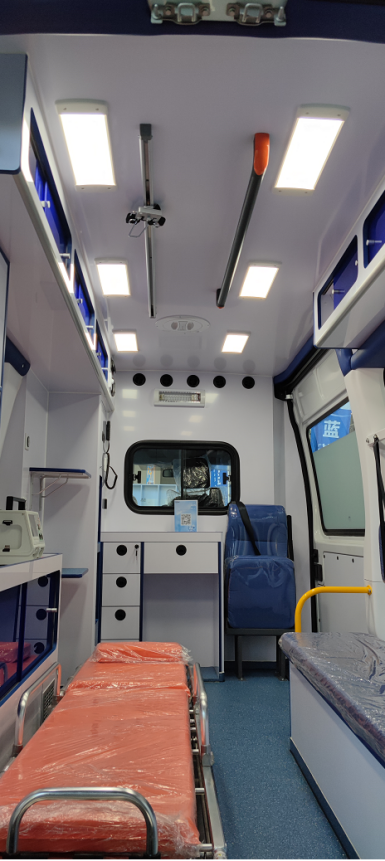

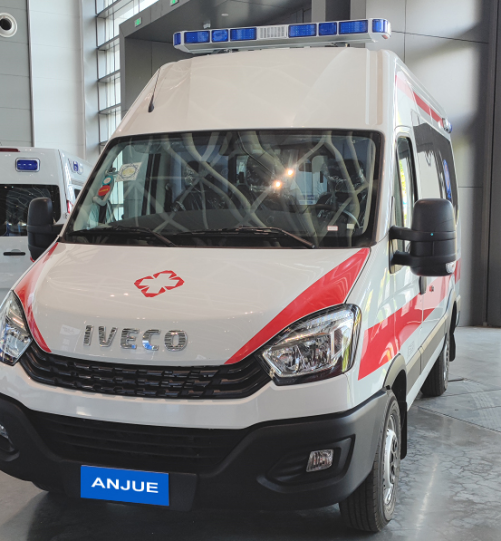

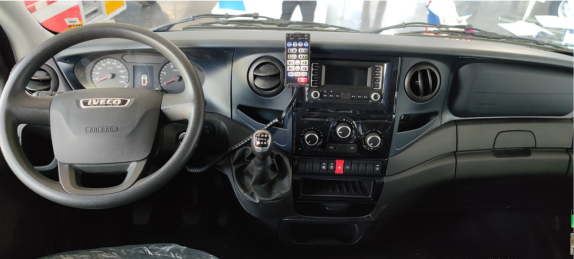

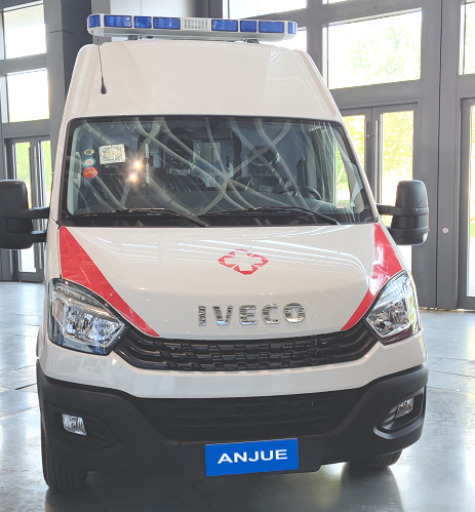

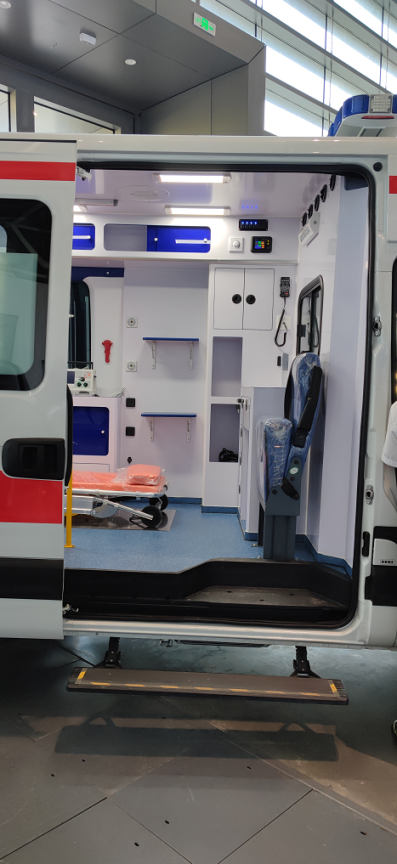

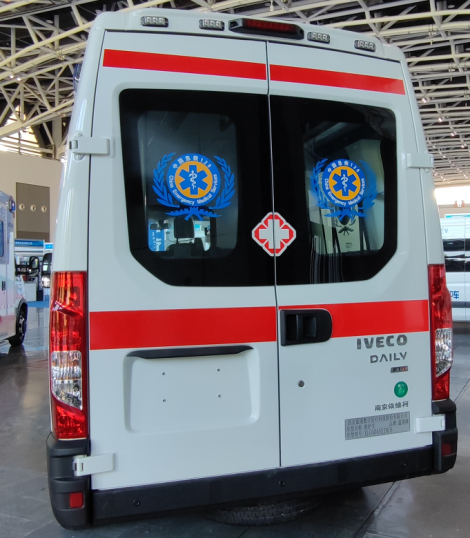

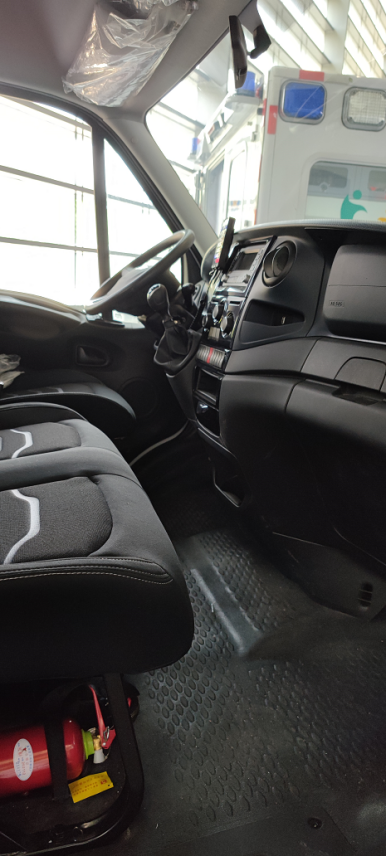

Reference pictures of ICU ambulance
