FOTON G9 ICU AMBULANCE
(EURO IV,Diesel,BJ5039XJH-AA)
(Exterior and Interior pictures of ambulance are available in the end of file)
Vehicle Characteristics

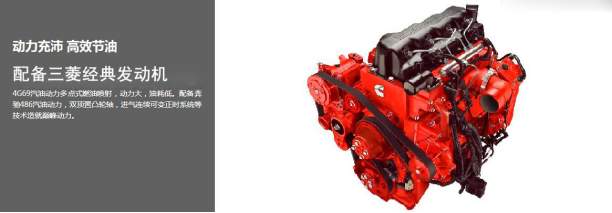

l Mitsubishi Classical Engine(powerful and fuel-efficient)

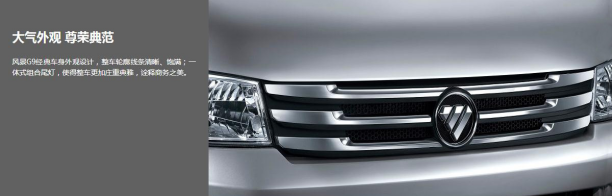

l Elegant Appearance
l Superior Service
l Bridge Console
Technical Parameters of original vehicle
A |
Dimensions and Masses |
|
1 |
wheelbase (mm):3110 |
|
2 |
Front wheel tread/ Rear wheel tread: 1655/1650 |
|
3 |
Minimum ground clearance(mm):170 |
|
4 |
Minimum turning diameter(m):12.5 |
|
5 |
Overall dimensions (mm):5380×1920×2505 |
|
6 |
Patient compartment(mm):3200×1750×1650 |
|
7 |
Complete vehicle curb mass:(kg):2060 |
|
8 |
GVW (kg):3400 |
|
9 |
Passenger Capacity:5-8 persons |
|
10 |
Max. speed (Km/h):145 |
|
B |
Engine |
|
1 |
Engine:ISF2.8s4129P Cummins engine |
|
2 |
Fuel type: Diesel |
|
3 |
Torque:280N.m |
|
4 |
Working manner: in-line, 4 cylinders, water-cooled, diesel engine |
|
5 |
Displacement (ml):2780 |
|
6 |
Emission standard:EURO IV |
|
7 |
Maximum power (kw):96 |
|
C |
Suspension Type and Braking |
|
1 |
Transmission: MT 5-speed mechanical type |
|
2 |
Chassis:BJ5039XJH-AA |
|
3 |
Front Overhang:Double wishbone torsion bar spring independent suspension |
|
4 |
Rear Overhang:Parallel leaf spring independent suspension |
|
5 |
Brake system: Front disc and rear drum power-assisted brake |
|
6 |
Steering system: Pinion and rack power-assisted steering |
|
7 |
Tire:195R15C |
|
8 |
Fuel tank capacity(L):65 |
|
1 |
ABS+EBD |
|
2 |
Front and rear heater and air conditioning |
|
3 |
Electronic adjustable headlamp + front fog lamp |
|
4 |

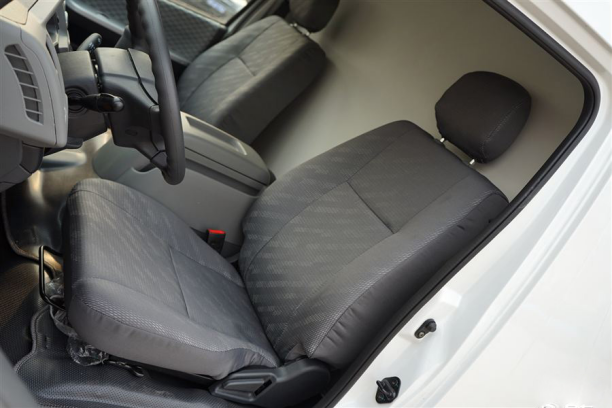

Knitted seat + headrest |
|
5 |
Electric door window + remote control lock |
|
6 |
2 loudspeaker |
|
7 |
Radio |
|
8 |
Electric adjustment rearview mirror |
|
9 |
0.5 Kg fire extinguisher |
|
10 |
PU steering wheel |
|
11 |
|
|
12 |
Front foot step |
|
13 |
Adjustable Angle steering wheel |
|
14 |
Driving sunshade (with ticket holder) |
|
15 |
Copilot visor (with makeup mirror) |
|
16 |
Front and rear bumper, same color with vehicle body |
|
17 |
Anti-glare internal rearview mirror |
|
18 |
High mounted stop lamp |
|
19 |
2 seats in driver’s cab |
|
|
Emergency Alarm System |
|
1 |
Bar alarm light (LED eight kinds flashing light effect, volume adjustable 100W loud speaker, working current ≤10A,Output impedance≤8Ω,Working temperature -40°——+50°) |
1 |
2 |
Blue snail alarm lights on the rear roof of vehicle |
2 |
3 |
2 Blue Flashing LED alarm lights mounted on left and right side of vehicle |
4 |
4 |
White exterior LED lighting mounted on the rear of both sides of the vehicle |
2 |
|
Air Conditioner and Heater |
|
1 |
Vehicle-mounted air conditioner in patient's compartment |
1 |
2 |
Heater in patient's compartment |
1 |
|
Power Supply and Lighting System |
|
1 |
Adjustable brightness LED illumination lights in the roof of patient's compartment |
6 |
2 |
12V time-lapse uv sterilizing lamp |
1 |
3 |
Spotlight lights of rear door |
1 |
4 |
1 |
|
5 |
100Ah backup battery |
1 |
6 |
IP6-level outside outlet |
1 |
7 |
15m mobile cable |
1 |
8 |
DC 12V outlets in patient's compartment |
1 |
9 |
AC 220V outlets in patient's compartment |
4 |
10 |
AC 220V power socket in driver’s cab |
1 |
11 |
Multi-function control panel, (centralized control of the modified circuit system, can directly display the battery voltage, easy to operate. Improve the safety of the whole circuit system; easier to maintain and replace fuse) |
1 |
|
Patient's compartment |
|
1 |
PVC material compartment wall mounted between driver's cab and patient's compartment , a glass window in wall to make observation |
1 |
2 |
High polymer environmental protection flame retardant material interior roof |
1 |
3 |
The floor is made of imported medical LG acid-proof, alkali-proof, fire-proof, skidproof and anti-static blue or red floor leather |
1 |
4 |
Raised edge of patient's compartment, dust-proof, anti-skidding, washable |
1 |
5 |
The walls, doors and roof are made of high polymer environmental protection and flame retardant materials |
1 |
6 |
Interphone |
|
7 |
Overturn doctor's seat with a safety belt behind the compartment wall |
1 |
8 |
Triple drawer behind partition wall |
1 |
9 |
Store cabinet for first-aid kit behind partition wall |
1 |
10 |
Oxygen cylinder fixing cabinet at the left side of the patient’s compartment |
1 |
11 |
Medical equipment cabinet is in front of oxygen cabinet, and medical equipment cabinet which is made of high polymer environmental protection and flame retardant materials |
1 |
12 |
Hanging cabinet with sliding window in left side of patient's compartment |
1 |
13 |
PVC cabinet bench (suitable for 3 people) with safe belts, the seat cushion and the back of a chair are covered with leather, mounted in right side of Patient's compartment |
1 |
14 |
Safety handrail on cabinet bench |
2 |
|
Safety handrail on side door |
1 |
15 |
Longitudinal oxygen supply range shall be installed in front of the left medical equipment cabinet, and 2 sets of German oxygen terminal interfaces and power sockets shall be installed in this range |
1 |
16 |
The oxygen cabinet is equipped with fixed 10L oxygen cylinder. Oxygen flow,pressure valve and oxygen pipeline layout is reasonable. |
2 |
17 |
Special oxygen inhaler (humidifier) |
2 |
18 |
Sliding transfusion hanging bracket mounted in the roof of Patient's compartment |
1 |
19 |
Ventilation fan mounted in the interior roof of Patient's compartment |
1 |
20 |
Antibacterial safety handrails are installed on the interior roof of Patient's compartment |
1 |
21 |
Automatic self-lifting stretcher mounted to patient's compartment |
1 |
22 |
Stainless steel guard at the bottom of the stretcher |
1 |
23 |
Scoop stretcher |
1 |
24 |
Black glass-film on the left side of Patient's compartment, and 2/3 frosted film on the right side |
1 |
25 |
Collision avoidance head restraint mounted in the middle door and tail door of Patient's compartment |
1 |
26 |
Fixing strap for medical devices (4units) |
1 |
27 |
Reflective strip and logo in vehicle body |
1 |
28 |
Fire extinguisher |
1 |
29 |
Stainless steel dirt tub |
1 |
30 |
Strong blue or red reflective strip in waist of body |
1 |

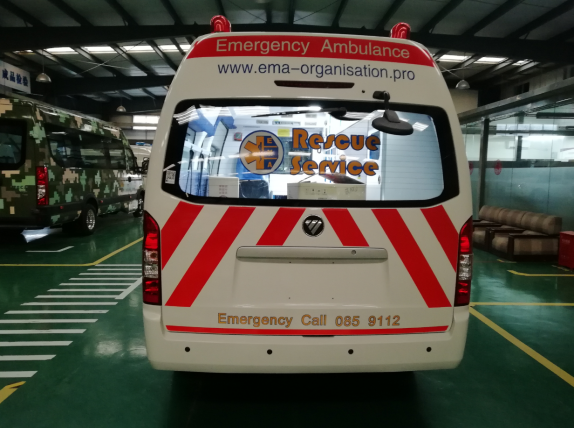

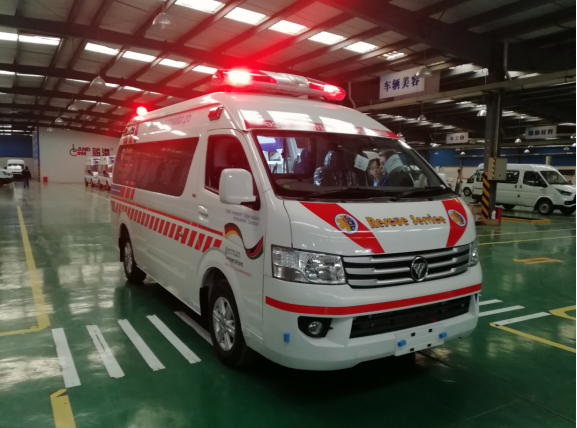

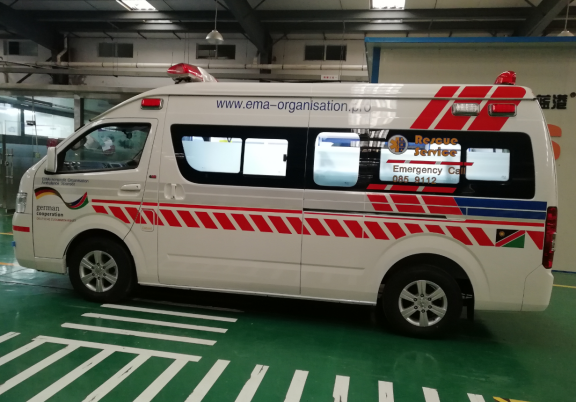

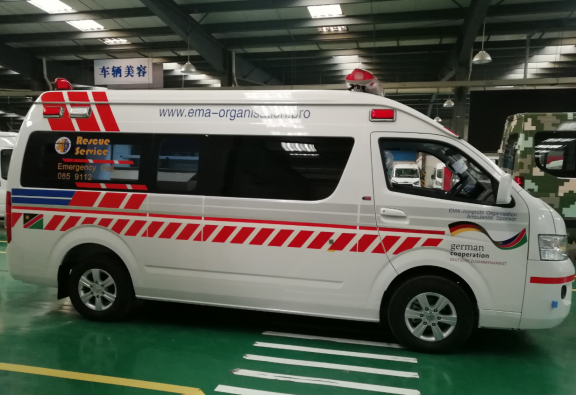

Reference Pictures of Ambulance
(Pictures for your reference only, all details are subject to confirmed technical specs and final design)
