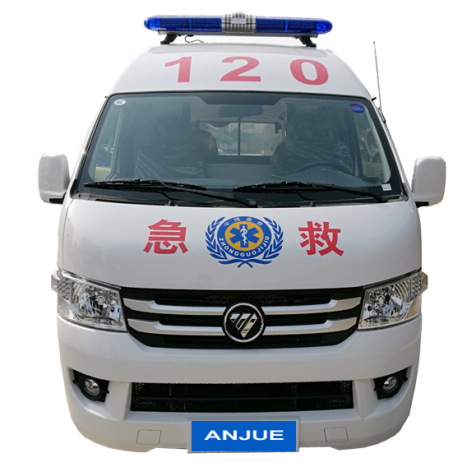

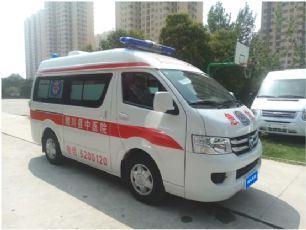

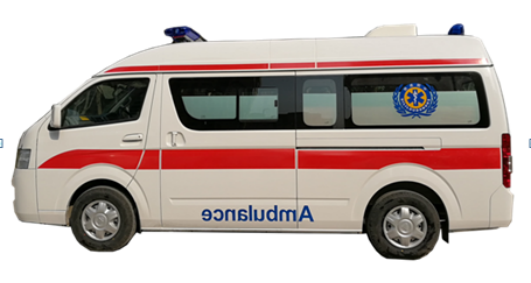

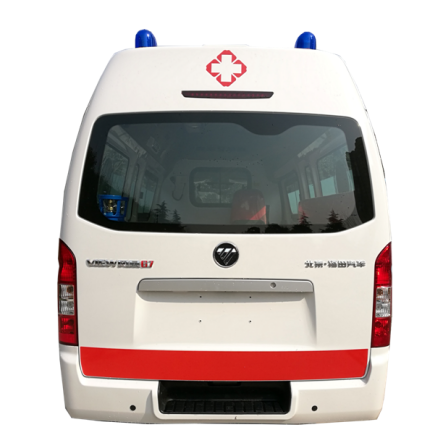

FOTON G7 Ward-Type AMBULANCE
(EURO VI, Petrol, XLG5032XJH6G7)
Technical Parameters of chassis vehicle
A |
Dimensions and Masses |
|
1 |
Overall dimensions (mm) |
5320×1695×2415 |
2 |
Patient compartment(mm) |
3000*1500*1550 |
3 |
GVW (kg) |
2860(Kg) |
4 |
Approach/departure angle(°) |
15/16.5 |
5 |
Complete vehicle curb mass (kg) |
2100 |
6 |
Front/Rear suspension (mm) |
1190/1080 |
7 |
Front wheel tread (mm) |
1470 |
8 |
Rear wheel tread (mm) |
1465 |
9 |
wheelbase (mm) |
3050 |
10 |
Max. speed (Km/h) |
150 |
11 |
Rated passengers(persons) |
6 |
12 |
Axle load |
1370/1490 |
13 |
Tires Qty. |
4 |
14 |
Tires sizes |
195R15C,195/70R15LT |
B |
Engine |
|
1 |
Engine model |
4K22D4M |
2 |
Fuel type |
Petrol |
3 |
Manufacturer of engine |
Foton |
4 |
Emission standard |
GB18352.6-2016国Ⅵ |
5 |
Displacement (ml) |
2378 |
6 |
Rated power (kw) |
118 |
Standard configuration of chassis vehicle |
||
1 |
Internal mirror manual adjustment + anti - glare function |
|
2 |
Power steering |
|
3 |
Steel Wheel 195R15C |
|
4 |
PU steering wheel |
|
5 |
ABS+EBD |
|
6 |
Front and rear air conditioning and heater |
|
7 |
Front electric window |
|
8 |
Remote control central lock, remote control key |
|
9 |
Radio + audio source interface
|
|
10 |
External rear view mirror with electric adjustment |
|
11 |
2 seats in driver’s cab |
Configuration Parameters of Ward-Type Ambulance
C |
Air conditioner and Heater |
|
1 |
Vehicle-mounted air conditioner in driver's cab |
1 |
2 |
Vehicle-mounted air conditioner in patient's compartment |
1 |
3 |
Heating system in patient's compartment |
1 |
D |
Power supply and Illumination |
|
1 |
12V outlets in patient's compartment |
1 |
2 |
220V outlets in patient's compartment |
3 |
3 |
1000w Intelligent inverted power supply |
1 |
4 |
45AH storage battery |
1 |
5 |
LED illumination lights in patient’s compartment |
4 |
6 |
12V Ultraviolet radiation disinfector light |
1 |
7 |
Spotlight in interior rear side of vehicle |
1 |
E |
Emergency Alarm System |
|
1 |
Control plate of siren and alarm lamp mounted in driver's cab |
1 |
2 |
Red/ Blue flashing alarm light bar mounted on the front roof of vehicle( including 100W loud speaker) |
1 |
3 |
Red / Blue Beacon lamps mounted on the rear roof of the vehicle |
2 |
F |

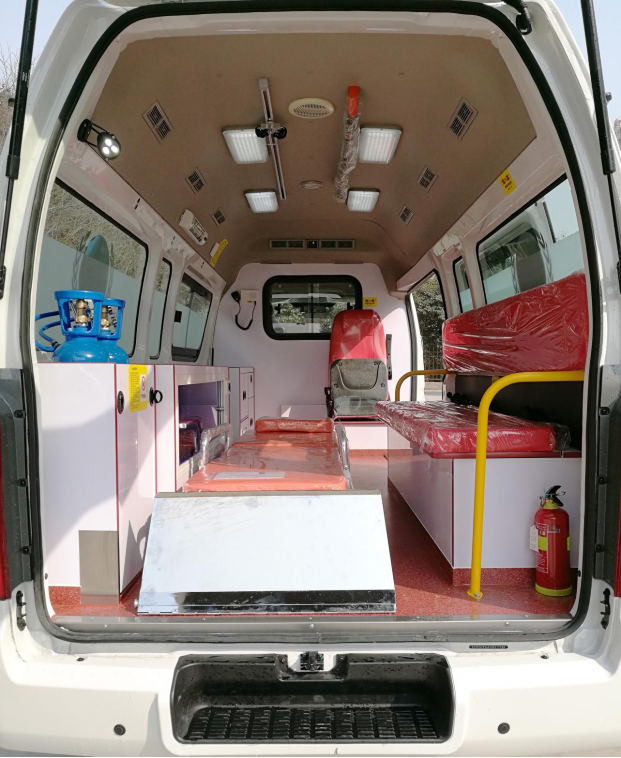

Patient's Compartment |
|
1 |
Original interior design of chassis |
1 |
2 |
Imported Interior medical floor, acid & alkali resistance, fire-prevention, anti-skid, anti-static. |
1 |
3 |
Covered perimeter of patient's compartment, dust-proof, anti-skidding, washable |
1 |
4 |
Compartment wall with PVC materials between driver's cab and patient's compartment, a glass window in wall to make observation |
1 |
5 |
Intercom installed in driver’s cab and patient's compartment |
1 |
6 |
Ventilation fan mounted in the interior roof of patient's compartment |
1 |
7 |
Foldable doctor seat with leather mounted to floor near to compartment wall |
1 |
8 |
One small medical cabinet shall be installed at the left side of the compartment wall |
1 |
9 |
Medical equipment cabinets shall be installed in the left side of the patient's compartment, with a polymer environment-friendly flame retardant material |
1 |
10 |
Two 10L oxygen cylinders are installed at the left wheel hub of the patient's compartment. The oxygen cylinders are equipped with oxygen flow and pressure valves. The oxygen supply pipes are arranged reasonably, and the control device is convenient for medical staff to operate and monitor |
2 |
11 |
Install 2 sets of German oxygen terminal interfaces and power sockets in the left window of the patient's compartment |
2 |
12 |
Special oxygen inhaler (humidifier) |
2 |
13 |
One-body Squad bench (suitable for 3 people) with safe belts, mounted in right side of patient's compartment |
1 |
14 |
Safety handrails at two sides of squad bench |
2 |
15 |
Sliding transfusion hanging bracket mounted to the interior roof of patient's compartment |
1 |
16 |
Safety handrails installed on vehicle roof |
1 |
17 |
Auto loading stretcher |
1 |
18 |
Stainless steel guard plate for stretcher (partial) |
1 |
19 |
Guide plate for Auto loading stretcher |
|
20 |
Strong blue or red reflective strip in waist of body |
1 |
21 |
Two thirds of the left and right sides of the medical cabin are affixed with high light transmittance frosted glass film, to ensure the isolation of the medical cabin from the outside and protect the privacy of patients |
1 |
22 |
Stainless steel waste bucket |
1 |
23 |
Fire extinguisher, can be removed from the fixed mechanism smoothly |
1 |
24 |
Equipment fixing belt (2 sets) |
2 |
