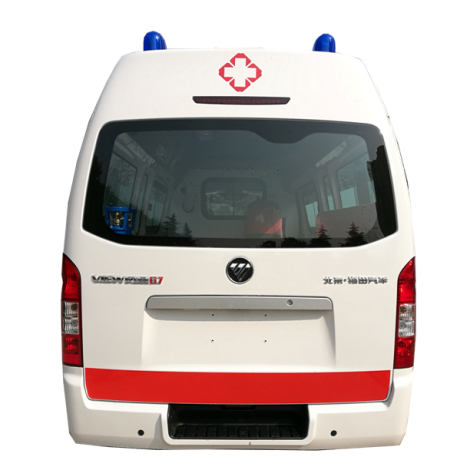

FOTON G7 Transport Type AMBULANCE
(EURO V, Petrol, BJ6489B1PYA-C5)
A |
Technical parameters of chassis vehicle |
|
1 |
wheelbase (mm):2570 |
|
2 |
Overall dimensions (mm):4840×1695×2240 |
|
3 |
Torque (N.m): 260 |
|
4 |
Complete vehicle curb mass:(kg):1940 |
|
5 |
Min. Ground clearance (mm):160 |
|
6 |
Min. Turning radius (mm):5500 |
|
7 |
GVW (kg):3060 |
|
8 |
Engine:3TZ |
|
9 |
Fuel type: petrol |
|
10 |
Displacement (ml):2693 |
|
11 |
Emission standard: EURO V |
|
12 |
Maximum power (kw):120 |
|
13 |
Clutch: single plate, dry type, diaphragm spring |
|
14 |
Transmission: mechanical type, 5MT |
|
15 |
Front / rear overhang: 1190/1080(mm) |
|
16 |
Front / rear wheel tread (mm):: 1470/1465 |
|
17 |
Brake system: Front disc rear drum brake |
|
18 |
Max. speed (Km/h):150 |
|
19 |
Steering system: power-assisted steering |
|
20 |
Tire:195R15C, Steel wheel + hubcap |
|
B |
Standard configuration of chassis vehicle |
|
1 |
ESP |
|
2 |
Front and rear air conditioning+ front heater |
|
3 |
Electronic adjustable headlamp + front fog lamp |
|
4 |
Knitted seat + headrest |
|
5 |
Three-point seat safety belts for all vehicles |
|
6 |
Electric door window + remote control lock Single upward opening rear door |
|
7 |
2 loudspeakers |
|
8 |
MP3 |
|
9 |
Double airbags in driver’s cab |
|
10 |
Rear windscreen wiper + Rear defrost + rear spray |
|
11 |
2 kg fire extinguisher |
|
12 |
PU steering wheel |
|
13 |
Electrical air conditioner |
|
14 |
Tire pressure monitor |
|
15 |
Front door step +step light |
|
16 |
Adjustable Angle steering wheel |
|
17 |
Driving visor (with ticket clip) |
|
18 |
Front and rear bumper, same color with vehicle body |
|
19 |
Passenger visor (without cosmetic mirror and ticket holder) |
|
20 |
Anti-glare inner rearview mirror |
|
21 |
High mounted stop lamp |
|
22 |
2 seats in driver's cab |
|
Configuration Parameters of Ambulance
C |
Air conditioner and Heater |
|
1 |
Vehicle-mounted air conditioner in driver's cab |
1 |
2 |
Vehicle-mounted air conditioner in patient's compartment |
1 |
3 |
Heating system in patient's compartment |
1 |
D |
Power supply and Illumination |
|
1 |
12V outlets in patient's compartment |
1 |
2 |
220V outlets in patient's compartment |
3 |
3 |
1000w Intelligent inverted power supply |
1 |
4 |
45AH storage battery |
1 |
5 |
Illumination lights in patient’s compartment |
4 |
6 |
12V Ultraviolet radiation disinfector light |
1 |
7 |
Spotlight in interior rear side of vehicle |
1 |
E |
Emergency Alarm System |
|
1 |
Control plate of siren and alarm lamp mounted in driver's cab |
1 |
2 |
Red/ Blue flashing alarm light bar mounted on the front roof of vehicle( including 100W loud speaker) |
1 |
3 |
Red / Blue Beacon lamps mounted on the rear roof of the vehicle |
2 |
F |

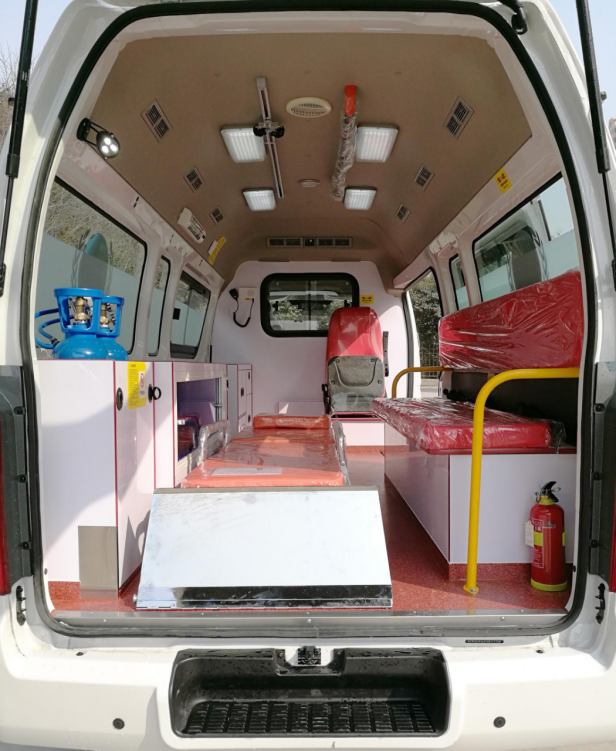

Patient's Compartment |
|
1 |
Original interior design of chassis |
1 |
2 |
Imported Interior medical floor, acid & alkali resistance, fire-prevention, anti-skid, anti-static. |
1 |
3 |
Covered perimeter of patient's compartment, dust-proof, anti-skidding, washable |
1 |
4 |
Compartment wall with PVC materials between driver's cab and patient's compartment, a glass window in wall to make observation |
1 |
5 |
Intercom installed in driver’s cab and patient's compartment |
1 |
6 |
Foldable doctor seat with leather mounted to floor near to compartment wall |
1 |
7 |
One small medical cabinet shall be installed at the left side of the compartment wall |
1 |
8 |
Ventilation fan mounted in the interior roof of patient's compartment |
1 |
9 |
Medical equipment cabinets shall be installed in the left side of the patient's compartment, with a polymer environment-friendly flame retardant material |
1 |
10 |
Two 10L oxygen cylinders are installed at the left wheel hub of the patient's compartment. The oxygen cylinders are equipped with oxygen flow and pressure valves. The oxygen supply pipes are arranged reasonably, and the control device is convenient for medical staff to operate and monitor |
2 |
11 |
Install 2 sets of German oxygen terminal interfaces and power sockets in the left window of the patient's compartment |
2 |
12 |
Special oxygen inhaler (humidifier) |
2 |
13 |
One-body Squad bench (suitable for 2 people) with safe belts, mounted in right side of patient's compartment |
1 |
14 |
Sliding transfusion hanging bracket mounted to the interior roof of patient's compartment |
1 |
15 |
Safety handrails installed on vehicle roof |
1 |
16 |
Auto loading stretcher |
1 |
17 |
Stainless steel stretcher bottom plate |
1 |
18 |
Guide plate for Auto loading stretcher |
|
19 |
Strong blue or red reflective strip in waist of body |
1 |
20 |
Two thirds of the left and right sides of the medical cabin are affixed with high light transmittance frosted glass film, to ensure the isolation of the medical cabin from the outside and protect the privacy of patients |
1 |
21 |
Stainless steel waste bucket |
1 |
22 |
Fire extinguisher, can be removed from the fixed mechanism smoothly |
1 |
23 |
Equipment fixing belt (2 sets) |
2 |
