Parameters and specifications of the Vehicle
Specification Requirement |
|
1 |
It conforms to the industry standard of QC/T457-2013 ambulance issued by the ministry of industry and information technology. |
2 |
To provide the announcement of "Road motor vehicle production enterprises and products" issued by ministry of industry and information technology |
A |
Dimension and Weight |
|
1 |
Overall Dimension (mm) |
L:5820 W:1974 H:2640 |
2 |
Dimension of Patient’s compartment (mm) |
L:3150 W:1750 H:1850 |
3 |
GVW (kg) |
3700 |
4 |
Turning diameter(m) |
13.3 |
5 |
Approach Angle/Departure Angle (°) |
22/24 |
6 |
Complete vehicle curb mass (kg) |
2680(8) |
7 |
Front/rear suspension (mm) |
933/1097 |
8 |
Front Wheel tread (mm) |
1740 |
9 |
Rear Wheel tread (mm) |
1704 |
10 |
Minimum ground clearance (mm) |
195 |
11 |
Wheelbase (mm) |
3750 |
12 |
Max speed (km/h) |
145 |
13 |
Number of seats |
8 |
14 |
Axle Load (kg) |
1690/2010 |
15 |
Qty. of tires |
4 |
16 |
Tires size |
215/75R16LT |
B |
Engine |
|
1 |
Engine |
DURATORQ4D226H (FORD) |
2 |
Type of Fuel |
Diesel |
3 |
Working manner |
Four-cylinder in-line, electronically controlled high pressure common rail, supercharged intercooled diesel engine ·
|
4 |
Engine Manufacturer |
Jiangling Motors Corporation, Ltd |
5 |
Emission standard |
GB17691-2018 CHINA Ⅵ,GB3847-2005 |
6 |
Displacement (ml) |
2198 |
7 |
Maximum power (KW) |
103 |
C |
Suspension and brake system |
|
1 |
Gearbox |
MT82, manual 6 speed |
2 |
Brake system |
Front ventilation disc, rear solid disc ·
|
3 |
Suspension system |
McPherson independent front suspension, hotchkiss rear suspension |
4 |
Service Brake |
Double pipe, vacuum booster, hydraulic lever
|
5 |
Parking Brake |
Located on the rear brake, mechanical cable control · wheel |
6 |
Chassis |
JX6581TA-M6 whole body |
Standard configuration of vehicle |
||
1 |
Side sliding door (with linkage machinery foot step) |
|
2 |
Central control door lock+ 2 remote keys |
|
3 |
Front power window |
|
4 |
Integrated rear pedal ·
|
|
5 |
Reverse sensor |
|
6 |
Bumper with same color with vehicle body |
|
7 |
Steel Hub + Hubcap |
|
8 |
Integrated side window |
|
9 |
Side door with sliding window |
|
10 |
Driver airbag + Pre-tightening seat belt |
|
11 |
Driver seat with manual 8 adjustment |
|
12 |
Four wheel disc brake |
|
13 |
ABS 8.0+EBD |
|
14 |
ESP+HHC |
|
15 |
Electronic anti-theft system |
|
16 |
||
17 |
3.5-inch liquid crystal meter + 10.1-inch central control display
|
|
18 |
High power air conditioning ·
|
|
19 |
Chrome plated headlight |
|
20 |
Center console integrated gear lever ·
|
|
21 |
DPF Self-cleaning function of particle trap ·
|
|
22 |
||
23 |
Cruise control, automatic headlights +LED daytime running lights, automatic wiper
|
|
24 |
Multi-function steering wheel |
|
25 |
PATS electronic anti-theft system
|
|
26 |
Air conditioning pollen / PM2.5 filtration function
|
|
|
|
Parameter of ICU Ambulance

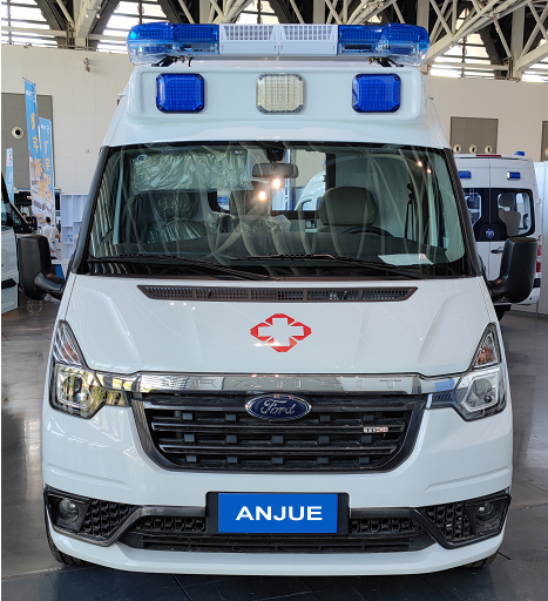

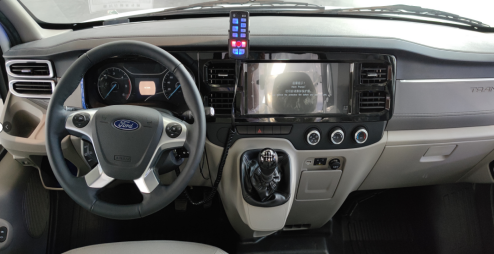

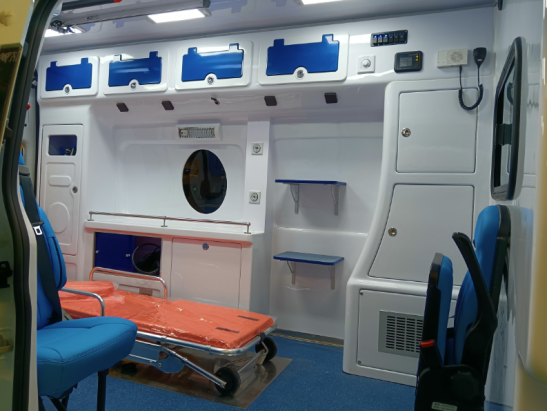

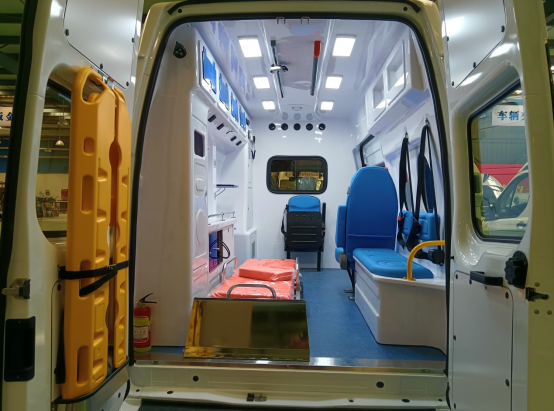

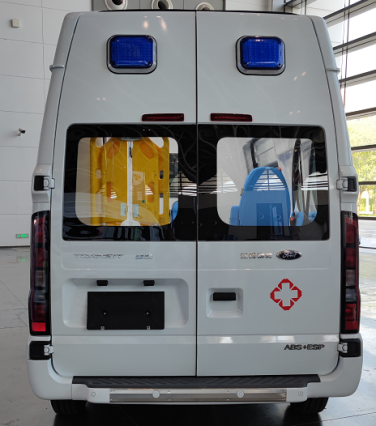

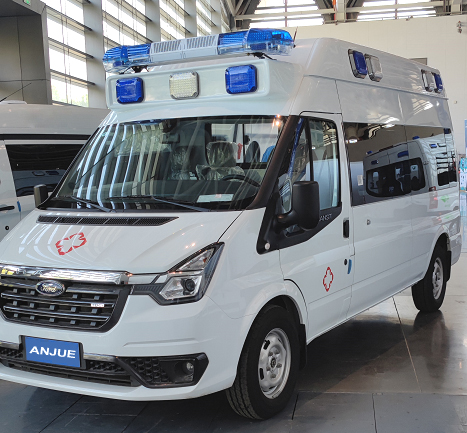

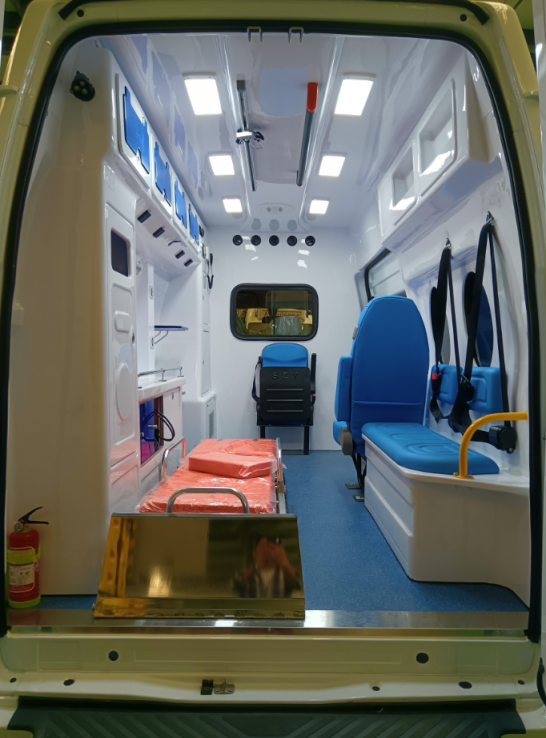

Reference pictures of ICU-Type ambulance

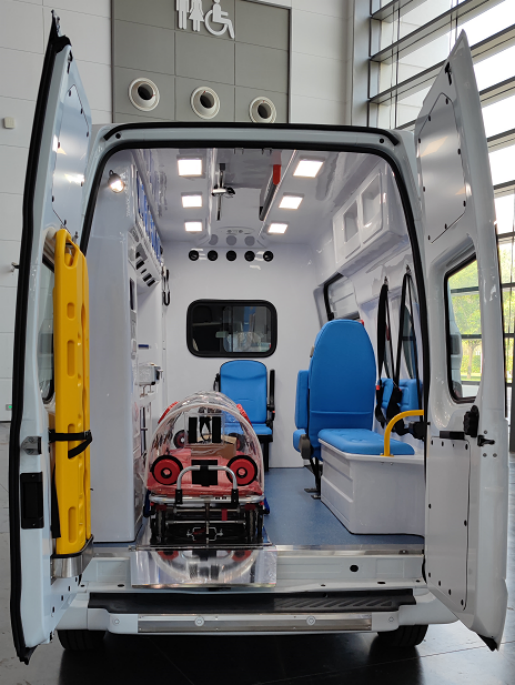

(Options: Isolation Stretcher Chamber)
