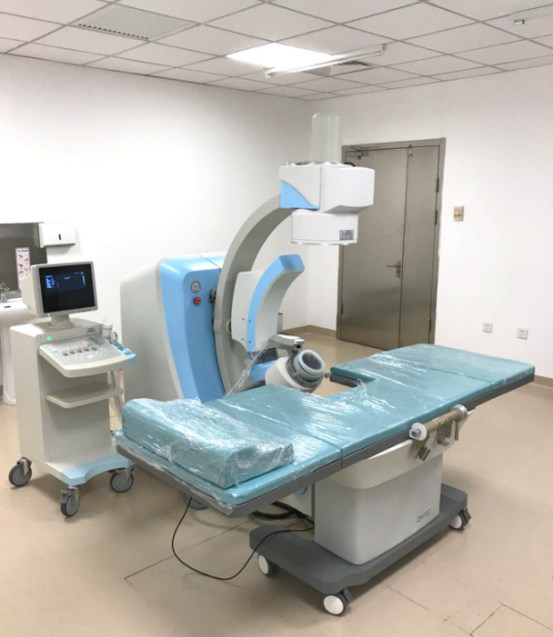

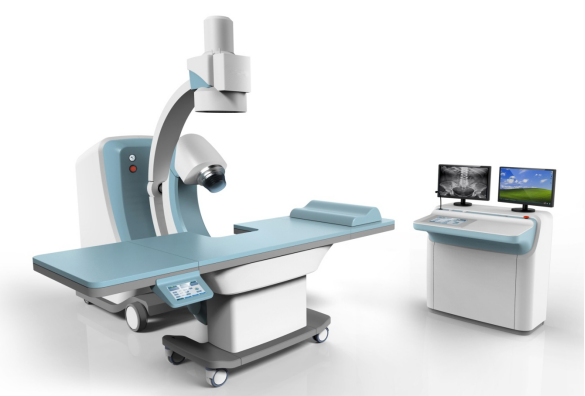

X-ray & Ultrasound Dual Positioning Electromagnetic Source
Extracorporeal Shock Wave Lithotripter
ESWL-6C
I. Lithotripter type: Electromagnetic shock wave
II. Positioning method: X-ray and ultrasound guide
III. Application: Use mainly for kidney stones, ureteral calculi and bladder stones
IV. Technical parameters:
(I) Electromagnetic shock wave
1. The high-voltage (treatment voltage): 10-18KV
2. The high-voltage discharge capacitor storage: 50-162J
3. Compressed sound pressure peak: 20MPa ~ 50Mpa
4. Expansive sound pressure peak: ≤3.5Mpa
5. Pulse width of the shock wave: ≤1 μs, shockwave front: ≤ 0.5 μs;
IV. Technical parameters:
(I) Electromagnetic shock wave
1. The high-voltage (treatment voltage): 10-18KV
2. The high-voltage discharge capacitor storage: 50-162J
3. Compressed sound pressure peak: 20MPa ~ 50Mpa
4. Expansive sound pressure peak: ≤3.5Mpa
5. Pulse width of the shock wave: ≤1 μs, shockwave front: ≤ 0.5 μs;
6. Shock wave focus range: radial ≤ ± 7mm; axial: -35mm ~ + 50mm
7. Treatment depth: 130mm (Optional:110mm, 120mm, 150mm)
8. ★ The shock wave source has a negative pressure system that can automatically vacuum and other functions to achieve low energy and low dose lithotripsy;
9. ★ Shock wave adopts fault alarm function, automatically cut off the high treatment voltage system, safe and reliable;
10. Integrated water system box (water intake, drainage, air intake and exhaust)
11. Shock wave device, high voltage switch, capacitance can be independently repaired and replaced.
V. X-ray imaging system.
1. Adopt C-arm motion X-ray two-way perspective positioning
2. 200mA tube, services voltage 50KV-100KV
3. 50mA high voltage generator
4. 1 million pixel CCD camera, resolution: 1360×1040
5. Medical X-ray image intensifier, high resolution: 14 lp/cm, high-definition image display;
6. ESWL workstations can store images, print cases and images
VI. Ultrasound Position system
1. The probe can make linear and circular movement to the focus, and the positioning error is ≤3mm;
2. The distance measurement error between the probe surface and the second focus ≤±1mm;
3. The spatial distance (deviation) between the focal point of the pressure pulse and the corresponding point of the target mark ≤ 3mm;
4. The minimum displacement of the positioning device is ≤1mm in all moving directions
5. Ultrasound probe can rotate 360 degrees around the shock wave head
6. Ultrasound probe electric moving range: 0-100mm
VII. Operation control system
1. ★ The whole machine adopts intelligent embedded ARM control systems (Please see the detailed description below of ARM)

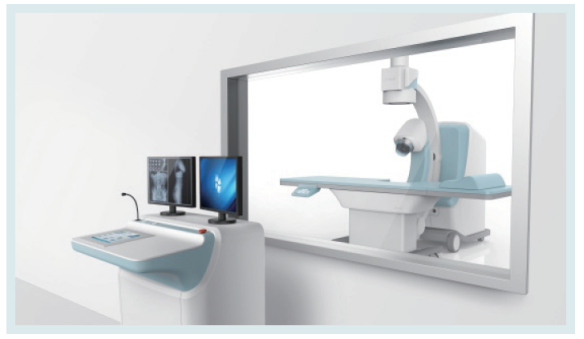

2. Operating system with the isolation room and 7-inch mobile bedside color LCD touch screen;
3. Main console 10-inch color LCD touch screen, dual-screen simultaneous display
4. 19-inch LCD monitor (Case management system)
5.19-inch high-resolution medical LCD monitor
6. ★ Audible and visual alarm and malfunction display in words
7. Backlight power supply of the touch screen can be turned off to extend the service life of the screen.
VIII. Treatment Bed and Mainframe
1. C- arm clockwise at 30 degrees, counterclockwise 25 degrees
2. Small C-arm (with shock wave source) can be turned upside down 180 °
3. Small C-arm (with shock wave source) slide along the arc slide rail with a range of 45 °
4. The treatment bed can be X, Y, Z three directions movement, with range of motion 150 mm, 150 mm, 200 mm;
5. The machine is equipped with wheels and can be moved easily; it can also be used independently as the urinary surgery bed;
6. Carrying weight of the treatment bed: ≥135kg
7. Treatment bed height 750mm.
IX. Power supply parameters
1. Power Phase: Single phase
2. Power supply voltage: AC 220V ± 10%
3. Power frequency: 50Hz ± 1Hz
4. Maximum power: 3000VA
5. Water requirements: distilled or purified water
6. Space requirements: Operation room ≥2.5mx5mx2.5m, Treatment Room ≥3.5mx5mx2.5m
Lithotripter machine component |
|||
1 |
Operating console |
1 set |
|
2 |
Main frame |
1 set |
|
3 |
High voltage system (high voltage ignition, high voltage generator, high voltage energy storage system) |
1 set |
|
4 |
Electromagnetic shock wave generator |
1 set |
|
5 |
Automatic water circulation system |
1 set |
|
6 |
Shock wave generator negative pressure system |
1 set |
|
7 |
Shock wave generator alarm system |
1 set |
|
8 |
Water and air valve box |
1 set |
|
9 |
Coaxial push rod treatment bed |
1 set |
|
10 |
Motion control system |
1 set |
|
11 |
Motion servo system |
1 set |
|
12 |
X-ray C arm |
1 set |
|
13 |
Small C arm (shock wave) |
1 set |
|
14 |
Intercom system |
1 set |
|
15 |
Main console 10 inch touch LCD screen |
1 set |
|
16 |
Bedside can move 7 inch of touch LCD screen |
1 set |
|
17 |
Embedded intelligent control system |
1 set |
|
18 |
Probe holder (Ultrasound positioning system) |
1 set |
|
X ray system and display system |
|||
1 |
9 inch image intensifier |
1 set |
|
2 |
200mA X-ray tube |
1 set |
|
3 |
1 million pixel CCD camera |
1 set |
|
4 |
50mA high frequency generator |
1 set |
|
5 |
19 inch high definition medical LCD |
1 set |
|
6 |
19-inch LCD Monitor (Case Management System) |
1 set |
No. |
Category |
Name |
Unit |
Number |
Remarks |
1 |
|
Lens |
piece |
1 |
130mm |
2 |
parts |
Water cushion |
piece |
3 |
Big 1. small 2. |
3 |
Focus tip |
set |
1 |
|
|
4 |
Stone test shelf |
set |
1 |
|
|
5 |
Grounding cable |
piece |
1 |
5m (4mm²) |
|
6 |
Insurance tube: glass tube 1AΦ5*20 |
piece |
2 |
|
|
7 |
Insurance tube: glass tube 4AΦ5*20 |
piece |
6 |
|
|
8 |
Insurance tube: glass tube 6AΦ5*20 |
piece |
4 |
|
|
9 |
Insurance tube: ceramic tube 16AΦ10*38 |
piece |
4 |
|
|
10 |
Insurance tube: ceramic tube 10AΦ10*38 |
piece |
4 |
|
|
11 |
Ring copper wire nose: Φ8 |
piece |
6 |
|
|
12 |
Ring copper wire nose: Φ6 |
piece |
4 |
|
|
13 |
704 silicone |
piece |
1 |
|
|
14 |
Teflon tape |
roll |
1 |
|
|
15 |
Solder wire |
roll |
1 |
|
|
16 |
Screw |
piece |
Some |
|
|
17 |
Test stone |
piece |
5 |
|
|
18 |
Pillow |
piece |
1 |
|
|
19 |
Inner hexagon spanner |
set |
1 |
Include 1.5、2、2.5、3、4、5、6、8、10 |
|
20 |
tools |
10 inch adjustable wrench |
set |
1 |
|
21 |
SLOTTED screwdriver、PHILLIPS screwdriver |
piece |
Each 1 |
|
|
22 |
socket wrench |
set |
1 |
M16 six corner head screws |
|
23 |
toolkit |
set |
1 |
|
|
24 |
documentation |
Instruction manual |
set |
1 |
|
25 |
Equipment installation form ,customer acceptance form |
set |
1 |
|
|
26 |
Business license, registration certificate, production license |
set |
1 |
copy |
|
27 |
Product inspection report. qualified certificate |
set |
1 |
|
ARM intelligent embedded control system.
ARM embedded is to install a micro-computer in the equipment. Our company uses the newest embedded control system and the advanced ARM processor. Rather than other company uses Monolithic integrated circuit or IC, separating components such backward technology control system, causing high- pressure table (energy) displays not stable; Unable to realize the self-diagnosis function; High failure rate; Components easily damaged and poor stability, etc..
ARM embedded control system has the advantage of making the device more intelligent, many of the actions we can to assist through the computer.
Advantages:
1. Triggering decrement count down, automatic stop triggering. (It helps doctor to work efficiently)
2. Stable high pressure. (It helps good treatment effect)
3. Automatically tracking voltage, automatic voltage regulation. (Safe and efficient)
4. Automatically displaying location of malfunction. (Easy maintenance)
5. Improve consumables service life (Reduce maintenance cost)
