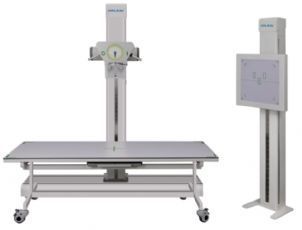

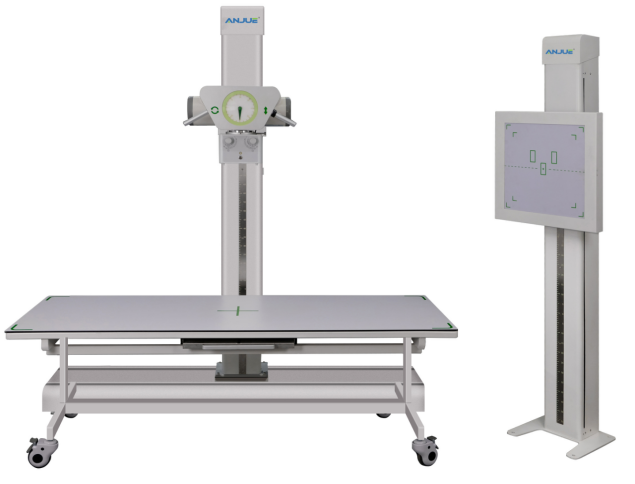

Digital Radiography X Ray Machine with Wired Flat Panel & Bucky Stand
65kW 800mA DR AJ-HX800DR,
50kW 630mA DR AJ-HX630DR
32kW 400mA DR AJ-HX400DR
65kW 800mA DR, 50kW 630mA DR, 32kW 400mA DR
Techinical Parameters
Model |
AJ-HX400DR |
AJ-HX630DR |
AJ-HX800DR |
Power |
32kW |
50kW |
65kW |
Power supply |
50HZ、60HZ, wire diameter >4mm2, internal resistance<0.5Ω; 20/32/50kW(220V /380V available),65kW(only 380V). |
||
mA |
10-400 mA |
10-630 mA |
10-800 mA |
KV |
40—125kV stepping by 1kV |
40—150kV stepping by 1kV |
|
Exposure time |
0.003~6.3s(34 steps)adjustment:Increased /reduced by 1mS each time |
||
Focus size |
Default 0.6*0.6mm/1.2*1.2mm dual focus, different brands of tubes optional |
||
Anode rotating speed/Anode heat capacity |
2800prm/1300kHU
|
8400prm/1300kHU |
|
Generator frequency |
30kHZ/400kHZ(optional) |
||
Radiography table(W*L cm) |
Flat Panel Detector Techinical Parameters
Item |
3543A |
4343A |
Flat panel detector type |
Direct imaging of cesium iodide amorphous silicon(CsI+a-si+TFT) |
|
Imaging area |
14*17 inches |
17*17 inches |
Pixel resolution |
2560*3072 |
3072*3072 |
Pixel size |
140um |
140um |
Imaging time |
<5 seconds |
<5 seconds |
A/D conversion |
16bits |
16bits |
Spatial resolution |
3.6lp/mm |
3.6lp/mm |
Flat panel detector size |
383*460*15mm |
460*460*15mm |
communication method |
Wired, wireless (optional) |
Wired, wireless (optional) |
Imaging software |
Professional medical software; Many languages optional; logos can be customized if order 3 units or more at a time. |
|
Computer configuration |
Intel i5 processor; 8G memory, 2G discrete graphics card, 128G solid-state hard drive + 1TB mechanical hard drive, PCI-E and Ethernet dual Gigabit network cable interface, R232 interface; 22.5-inch professional small dot pitch display; (optional laptop) |
Digital Images
【Image of 40kV 2.5mAS fish】
【Image of 50kV 5mAS palm】
【Image of 110kV 4mAS lung】

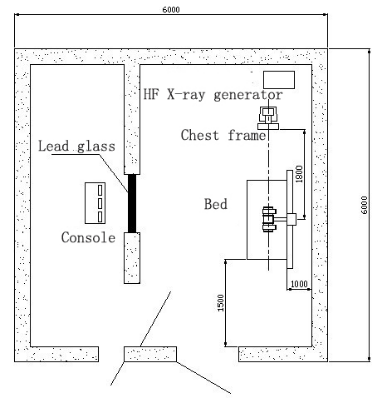

Installation Instructions
1. X-ray room: 20m2 room is recommended.
2. Lead glass size recommended: 40*60cm or 60*80 cm
3. X-ray protection preparation: use barium sulfate powder or lead sheet for the wall of the room, and lead sheet for the ceiling;
4. A fan must be installed on the top to facilitate the discharge of ionized air
