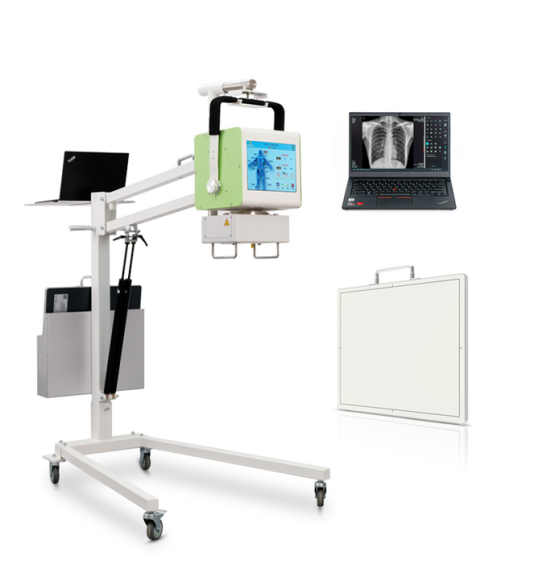

5kW 100mA Mobile Digital Radiography X Ray Machine with Wired Flat Panel AJ-HX100DR
【Remarks】
1. Main unit packed in wooden cage,Size: 51*71*55cm,Net weight: 47KG
2. Steel stand packed in carton,Size: 116*47*20cm,Net weight: 32KG
3. Flat panel packed in carton,Size: 55*55*6cm,Net weight: 7KG
4. Laptop packed in carton,Size: 58*36*14cm,Net weight: 4KG
Techinical Parameters
Maximum output power |
5kW |
|
Power supply |
AC220V±10%, 50/60Hz±1Hz |
|
Power |
220V/50Hz(Wire diameter >4mm2;Internal resistance <0.5Ω) |
|
mA adjustable range |
32-100 mA |
|
mAs adjustable range |
0.32~315mAS, stepping R’10 or 0.4 |
|
kV adjustable range |
40kV~110kV, continuous regulation, stepping 1kV |
|
Exposure time |
0.01~6.3s |
|
X-ray tube focus |
1.8*1.8mm |
|
Rotating speed / Heat capacity |
2800prm/42kHU |
|
Generator frequency |
30kHz |
|
Flat panel parameter |
Imaging Size |
17*17、14*17inch (wired) |
Pixel Pitch |
140um |
|
A/D Conversion |
16bits |
|
Spatial Rresolution |
3.6lp/mm |
|
Software |
Veterinary software |
|
Laptop parameter |
R3-4300U processor, 8G running memory, 256G solid state drive |
Digital Images

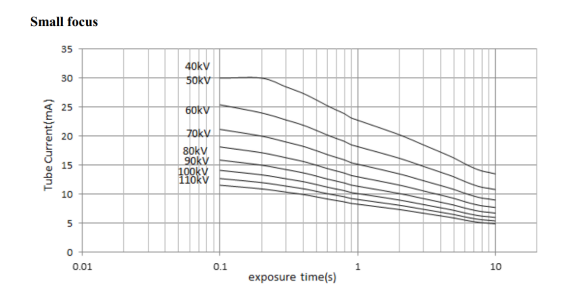

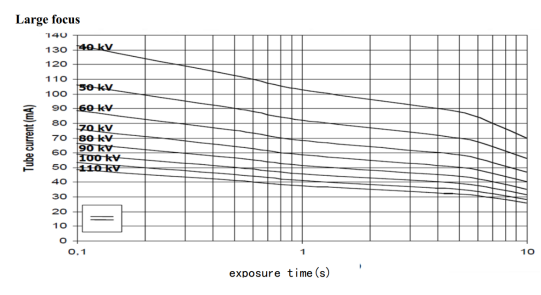

X-ray Curves Chart
